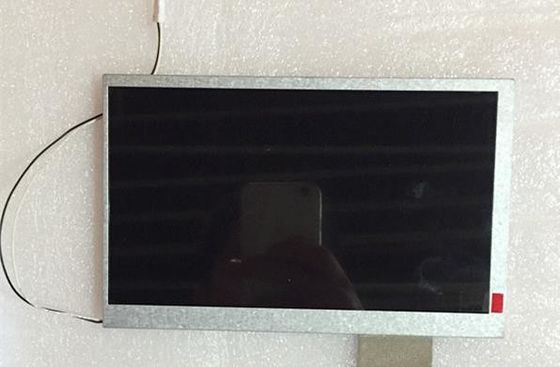

Product Details:
|
| Brand: | Innolux | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 024(RGB)×600, WSVGA 148PPI | Outline Size: | 192.8(W)×116.9(H) ×6.7(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

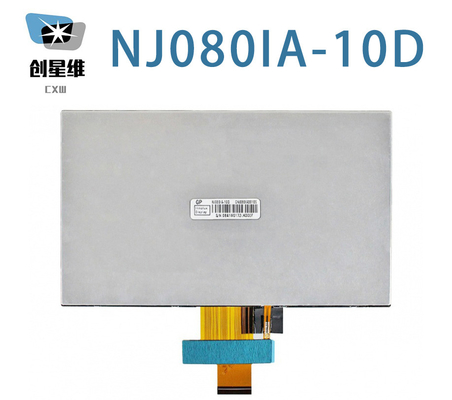

| Basic Information : | Brand | Model | NJ080IA-10D | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.0575×0.1656 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1725×0.1656 (H×V) [148PPI] | |
| Mechanical Size : | Active Area(mm) | 176.64(H) × 99.36(V) | Bezel Area(mm) | 180.44(H) × 103.16(V) |
| Outline Dim.(mm) | 192.8(H) × 116.9(V) | Depth(mm) | 6.4±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 184g (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 3.3/13/24/-5.6V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S9P | Life Time | 20K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.3±0.3V | Current Supply | 540/585mA (Typ./Max.) | ||
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 180.44(W)×103.16(H) mm, with surface treament of Antiglare, net weight of 184g (Typ.). As a AAS, Normally Black, Transmissive LCM product, NJ080IA-10D can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. NJ080IA-10D utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/13/24/-5.6V (Typ.)(DVDD/AVDD/VGH/VGL)
