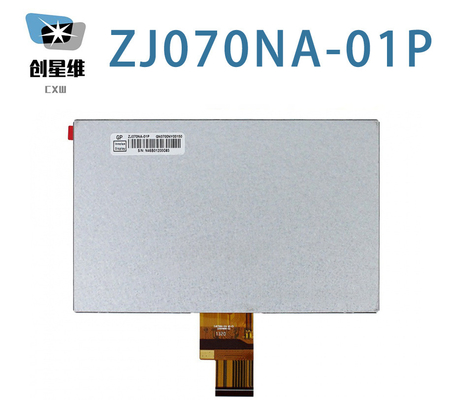

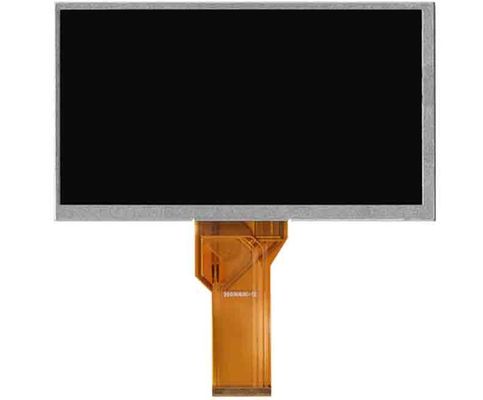

Product Details:
|
| Brand: | Innolux | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 169PPI | Active Area: | 153.6(W)×90(H) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) |
| Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| ZJ070NA-01P | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.050×0.150 mm | 0.150×0.150 mm [169PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 153.6×90 mm | 156.4×92.8 mm | 165.75×105.39 mm | 4.80±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 17:10 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 156g | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 75/75/70/75 (Typ.)(CR≥10) | 6 o'clock | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.310; Y:0.330 | |
| Luminance Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 38/20/0.25/0.25mA (Typ.)(IDVDD/IAVDD/IGH/IGL) | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) | 0.35W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 240/300mA (Typ./Max.) | 9.9/10.5V (Typ./Max.) | 2.38W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | No | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.75(W)×105.39(H)×5.1(D) mm, viewing area size of 156.4(W)×92.8(H) mm, with surface treament of Glare (Haze 0%), net weight of 156g. As a TN, Normally White, Transmissive LCM product, ZJ070NA-01P can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. ZJ070NA-01P utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL).
