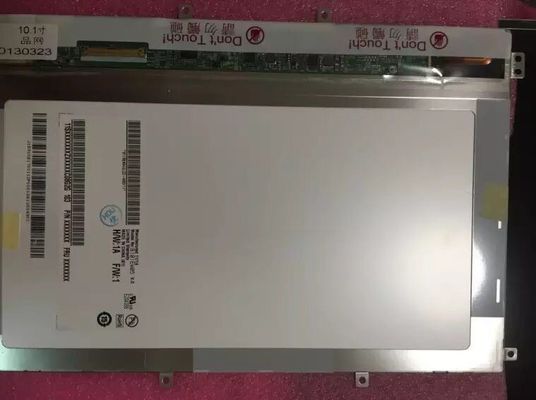

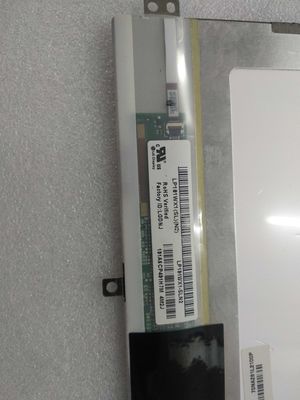

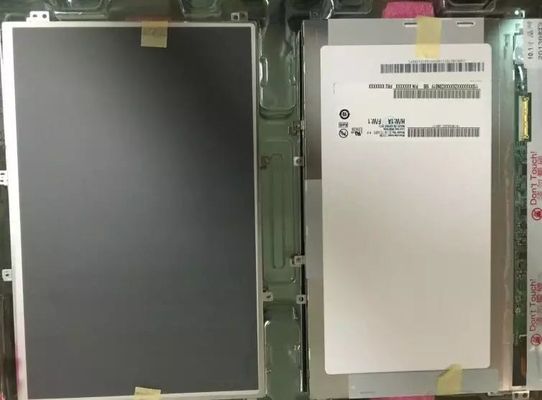

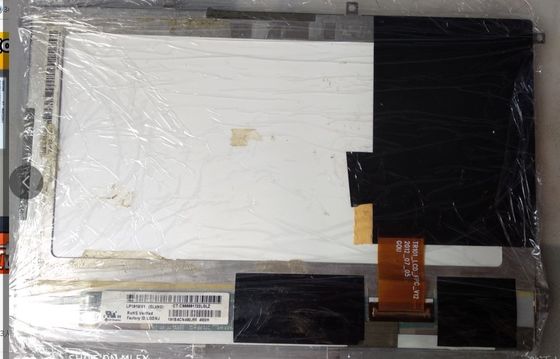

1280×800 400cd/m2 TFT LCD Panel 149PPI 10.1" LP101WX1-SLN1 89/89/89/89 (Typ.)(CR≥10)

Large Image : 1280×800 400cd/m2 TFT LCD Panel 149PPI 10.1" LP101WX1-SLN1 89/89/89/89 (Typ.)(CR≥10)

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LP101WX1-SLN1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

1280×800 400cd/m2 TFT LCD Panel 149PPI 10.1" LP101WX1-SLN1 89/89/89/89 (Typ.)(CR≥10)

Description

MODEL NUMBER:	LP101WX1-SLN1	BRAND:	LG DISPLAY
SIZE:	10.1INCH	BRIGHTNESS:	400CD/M2
Lamp Type:	WLED	RESOLUTION:	1280(RGB)×800 (WXGA) 149PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:	10.1" 1280×800 TFT LCD Panel , TFT LCD Panel 149PPI , LP101WX1-SLN1 Industrial LCD Panel

LG Display LP101WX1-SLN1 Application Details

Basic Detail :	Manufacturer LP101WX1-SLN1 1 CompatibleModel Name Panel Type a-Si TFT-LCD , LCM Another Name LP101WX1 (SL)(N1) Panel Size 10.1 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LP101WX1-SLN1 Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.) Contrast Ratio 500:1 (Min.) (Transmissive) Good View at Symmetry Response Speed 35 (Typ.)(Tr+Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit) Color Temperature 6485K White Variation 1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio 49% sRGB 68% coverage Adobe RGB 51% coverage DCI-P3 51% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP101WX1-SLN1 Mechanical Details

Pixel Features :	Number of Pixel 1280(RGB)×800, WXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0565×0.1695 mm Pixel Pitch(W×H) 0.1695×0.1695 mm [149PPI]
Physical Size :	Active Viewing 216.96(W)×135.6(H) mm Overall Dim. 241.86(W)×161.6(H) mm Bezel Opening 221.6(W)×140.3(H) mm Overall Depth 3.35/5.2 (Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:10 Shape Style
Fixation :	Face mounting holes (10 pcs) on left, right, up, down slugs
Other Detail :	Mass 160g (Max.) Surface Glare (Haze 0%)

LG Display LP101WX1-SLN1 Interface Detail

Signal Electrical :	Input Current 303/348mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption 1.0/1.15W (Typ./Max.) Signal Interface LVDS (1 ch, 6-bit)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment UJU IS050-L40B-C10 0.5 mm 40 pins 1 pcs LVDS-40P1C6B-060B

LG Display LP101WX1-SLN1 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life 12K(Min.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Voltage 7.0/12.0/21.0V (Min./Typ./Max.) Input Current 200/214mA (Typ./Max.) Consumption 2.4/2.57W (Typ./Max.)

LG Display LP101WX1-SLN1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	30 pcs / box	-	468×355×226 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
