Product Details:
|
| MODEL NUMBER: | LD320DUE-FHB1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1920(RGB)×1080, FHD, 69PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 400CD/M2 |
| SIZE: | 32.0"inch | BRAND: | LG DISPLAY |
| High Light: | 32.0in TFT LCD Panel,69PPI TFT LCD Panel,LD320DUE-FHB1 Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LD320DUE-FHB1 | |
|---|---|---|---|---|
| Diagonal Size | 32.0" | Application | ||

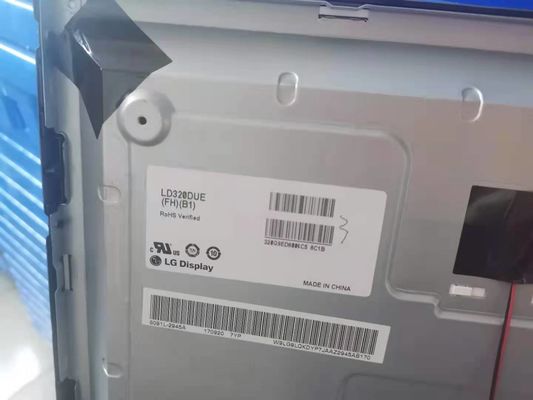

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LD320DUE (FH)(B1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.12125×0.36375 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.36375×0.36375 mm (H×V) [69PPI] | |
| Mechanical Size : | Display Area | 698.4×392.85 mm (H×V) | Bezel Area | 703.4×397.9 mm (H×V) |
| Outline Dim. | 723.4×422.9 mm (H×V) | Outline Depth | 26.3 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 3.60/4.00Kgs (Typ./Max.) | Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 10 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.281; Wy:0.288 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 9966K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 96% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 18S1P | Position | Direct light type | |
| Lamp Electrical : | Voltage Input | 111.6/118.8/127.8V (Min./Typ./Max.) | Current Input | 250mA (Typ.) | ||
| Consumption | 29.7/31.95W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CNPLUS | 1504-12102 | 5.0 mm | 2 pins | 1 pcs | BLE-2PINS-CA | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 525/683mA (Typ./Max.) | ||
| Consumption | 6.3/8.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RXE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||

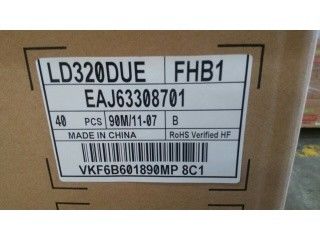

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 40 pcs / box | - | 1140×850×1118 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
