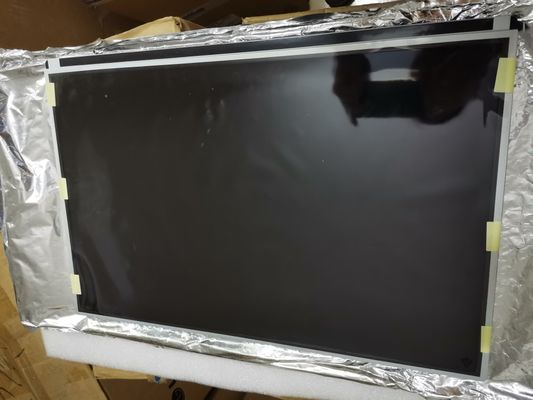

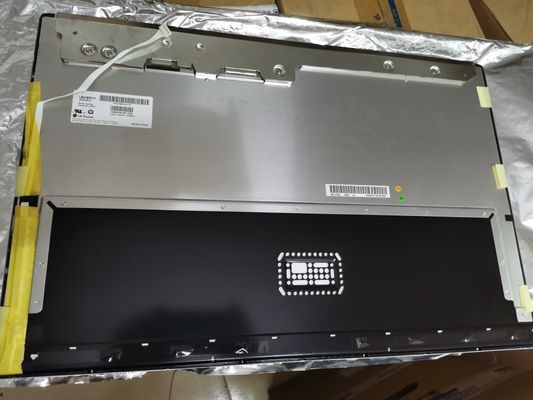

Product Details:
|
| MODEL NUMBER: | LM240WU6-SDA1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1920(RGB)×1200, WUXGA, 94PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 320CD/M2 |
| SIZE: | 24.0INCH | BRAND: | LG DISPLAY |
| Highlight: | 320cd/m2 TFT LCD Panel,WUXGA 94PPI TFT LCD Panel,LM240WU6-SDA1 Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | LM240WU6-SDA1 | |
|---|---|---|---|---|

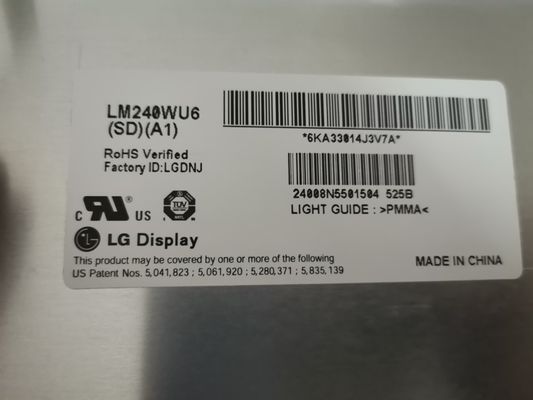

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM240WU6 (SD)(A1) | |
| Panel Size | 24.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 320 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6.5/7.5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | S-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 518.4(W)×324(H) mm | Overall Dim. | 546.4(W)×361.6(H) mm |
| Bezel Opening | 523.4(W)×329.0(H) mm | Overall Depth | 18.8 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes | |||
| Other Detail : | Mass | 3.50/3.70Kgs (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Signal Electrical : | Input Current | 433/510/587mA (Min./Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.12/7.04W (Typ./Max.) | Signal Interface | eDP (4 Lanes) | |||

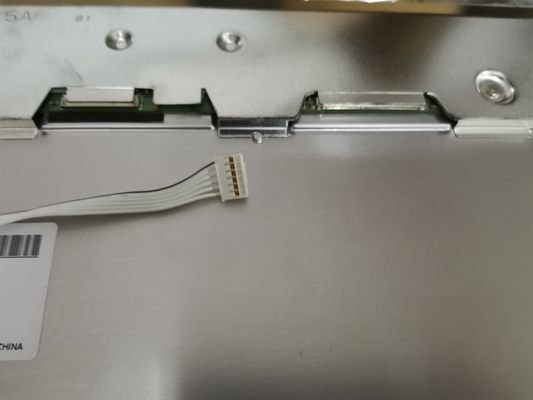

| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | KDF71G-30S-1H(500) | 1 pcs | 1.0 mm | 30 pins | ||
| HRS | DF19G-20P-1H(54) | 1 pcs | 1.0 mm | 20 pins | ||
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 39K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 350/700mA (Typ./Max.) | Input Voltage | 60/73.2V (Min./Max.) | ||
| Consumption | 63/65.91W (Min./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | H212K-P06N-00B | 1 pcs | 1.25 mm | 6 pins | BLE-6PINS-CAACAC | |
| Backlight Driver : | No | |||||
