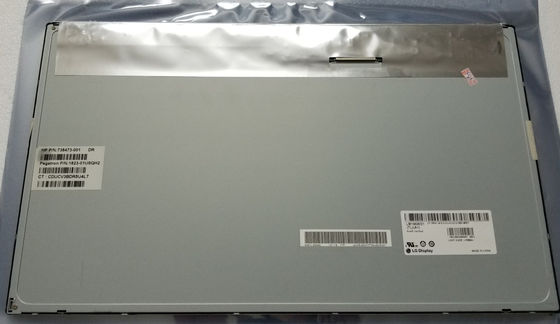

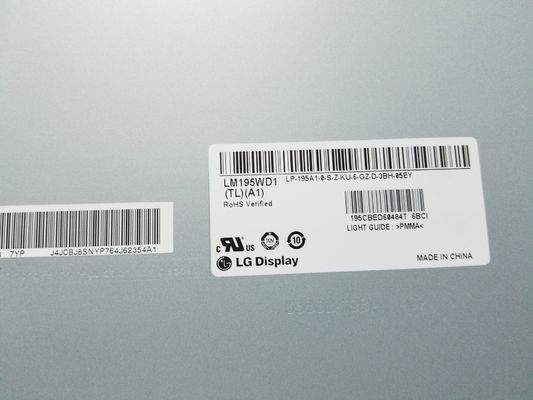

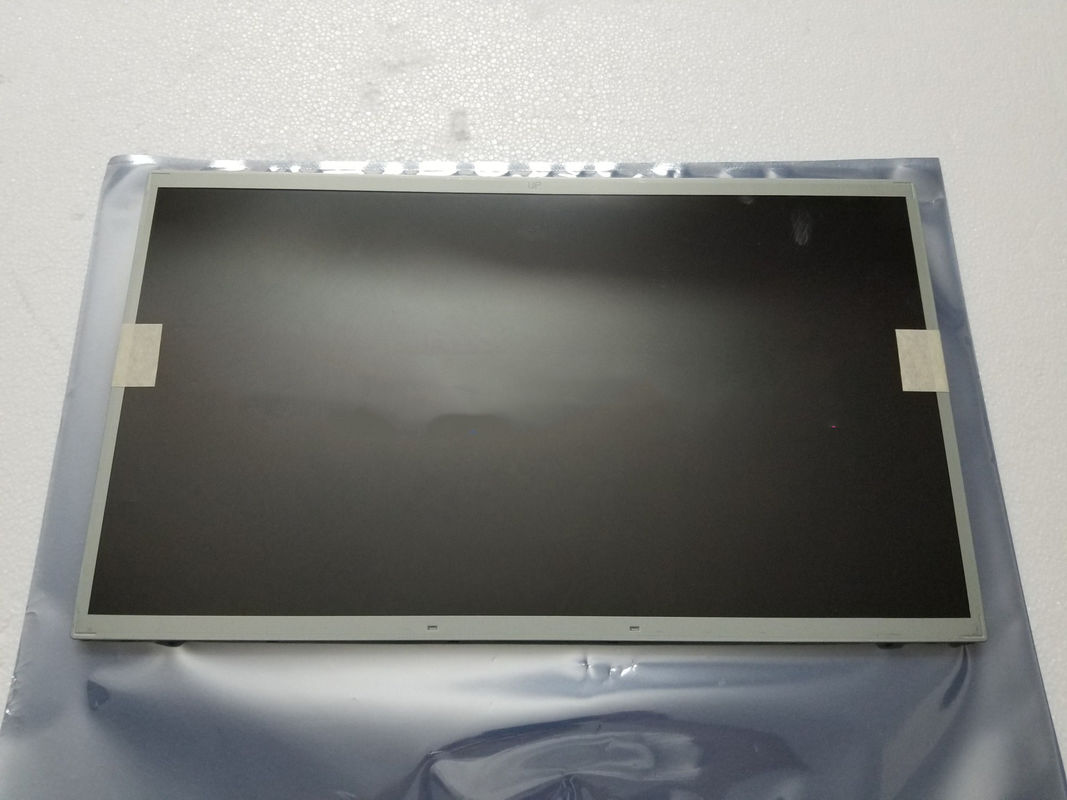

LG Display 19.5" 1600x900 94PPI TFT LCD Display 200cd/m2 LM195WD1-TLC1

Large Image : LG Display 19.5" 1600x900 94PPI TFT LCD Display 200cd/m2 LM195WD1-TLC1

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM195WD1-TLC1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

LG Display 19.5" 1600x900 94PPI TFT LCD Display 200cd/m2 LM195WD1-TLC1

Description

MODEL NUMBER:	LM195WD1-TLC1	RESOLUTION:	1600(RGB)×900 [HD+] 94PPI
VIEWING ANGLEG:	45/45/15/35 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Lamp Type:	WLED	BRIGHTNESS:	200CD/M2
SIZE:	19.5 Inch	BRAND:	LG DISPLAY
High Light:	1600x900 TFT LCD Display , 94PPI TFT LCD Display , LM195WD1-TLC1 Lcd Video Display

LG Display LM195WD1-TLC1 Application Details

Basic Info :	Panel Brand LM195WD1-TLC1Panel Model Diagonal Size 19.5" Application a-Si TFT-LCD , LCMPanel Type Model Alias LM195WD1 (TL)(C1)
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C

LG Display LM195WD1-TLC1 Mechanical Details

Pixel Features :	Pixel Format 1600(RGB)×900, HD+ Dot Pitch 0.0904×0.2626 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.2712×0.2626 mm (H×V) [94PPI]
Mechanical Size :	Display Area 433.92×236.34 mm (H×V) Bezel Area 437.2×239.6 mm (H×V) Outline Dim. 452×263 mm (H×V) Outline Depth 7.6/11.0 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 17:9 (H:V) Shape Style Normal bezel
Holes & Brackets :	Side mounting holes (4-M3) on up, down bezel
Other Features :	Weight 1.40/1.47Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)

LG Display LM195WD1-TLC1 Optical Details

Basic Information :	Brightness 200 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 45/45/15/35 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 1.3/3.7 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (6-bit + Hi-FRC) Color Temperature 6485K Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 93% coverage Adobe RGB 72% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM195WD1-TLC1 Backlight Details

Back-light Features :	Lamp Type WLED Amount 12S2P Life Time 30K(Min.) (Hours) Replacement - Lamp Shape 2 strings Position Edge light type (Right side)
Lamp Electrical :	Voltage Input 37.2±2.4V Current Input 120/125mA (Typ./Max.) Consumption 8.9/9.5W (Typ./Max.)
Interface Features :	Type Connector Position NoLamp Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration LS Mtron GT108-6P-H26-E3500 1.0 mm 6 pins 1 pcs BLE-6PINS-CNAANC

LG Display LM195WD1-TLC1 Interface Detail

Signal Systerm :	LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 5.0V (Typ.) Current Input 694/789mA (Typ./Max.) Consumption 3.12/3.59W (Typ./Max.)
Interface Features :	Type Connector Position

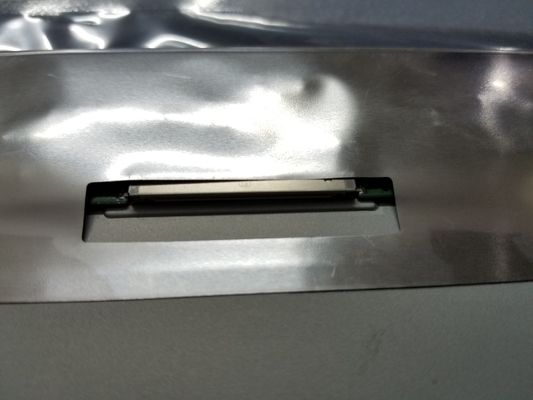

Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration LS Mtron GT103-30S-HF15-E2500 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160C
