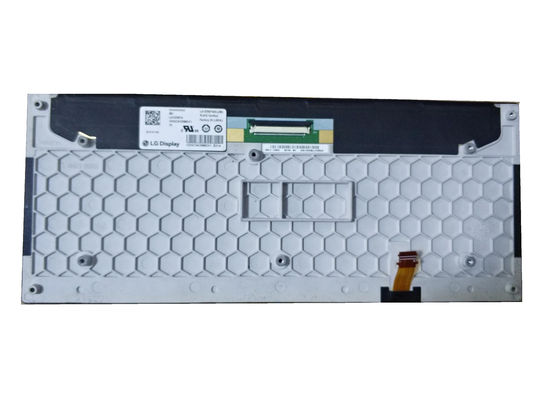

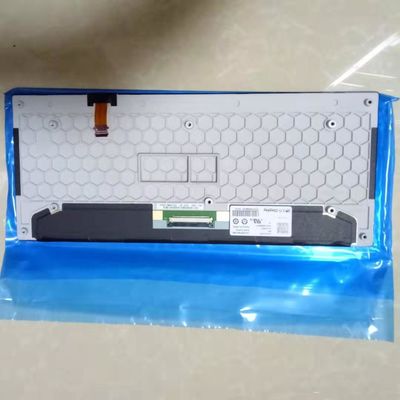

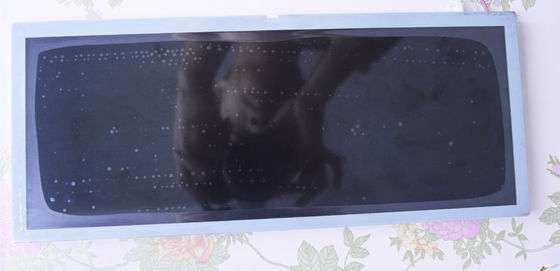

Product Details:
|
| MODEL NUMBER: | LA123WF4-SL02 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 650CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s² |
| Highlight: | 650cd/m2 TFT LCD Panel,12.3" TFT LCD Panel,LA123WF4-SL02 Square LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LA123WF4-SL02 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -40 ~ 85 °C | -40 ~ 95 °C | 3.0G (29.4 m/s²) |
| Panel Size : | 12.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.0507×0.1521 mm | 0.1521×0.1521 mm [167PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 292.032×109.512 mm | - | 310.4×128.9 mm | 10.15 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 481/496g (Typ./Max.) | Hard coating | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 650 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 86% | 99% | 83% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 89% | 65% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 295/130/3/3mA (Max.)(ICC/IDD/VGH/VGL) | 3.3/13.0/20/-9.5V (Typ.)(VCC/VDD/VGH/VGL) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||

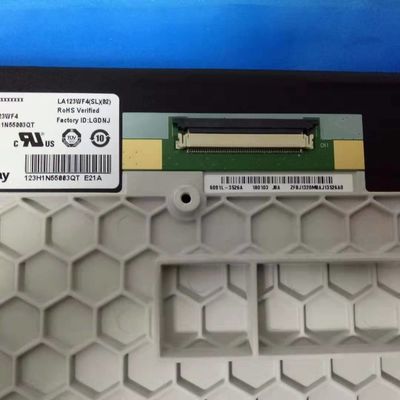

| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | 9688S-60A-GFA | 1 pcs | 0.5 mm | 60 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 11S4P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 85/90mA (Typ./Max.) | 36/37.2V (Typ./Max.) | 12.3/13.39W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 20 pins | ||||

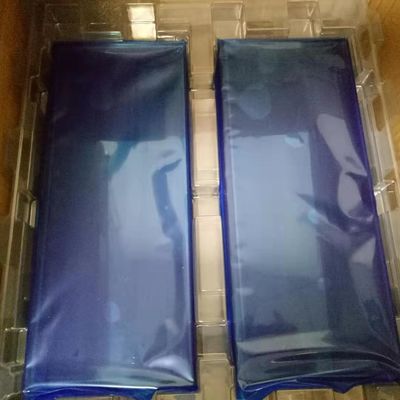

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 14 pcs / box | - | 478×365×244 mm (L×W×H) |
