Product Details:
|
| MODEL NUMBER: | LM270WR2-SPA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 163PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| BRIGHTNESS: | 350CD/M2 | SIZE: | 27.0INCH |
| High Light: | LM270WR2-SPA1 TFT LCD Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||

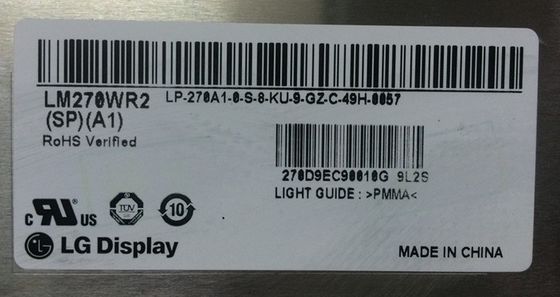

| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM270WR2-SPA1 | a-Si TFT-LCD , LCM | LM270WR2 (SP)(A1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.05175×0.15525 mm | 0.15525×0.15525 mm [163PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 596.16×335.34 mm | 602.0×340.4 mm | 630×368.2 mm | 13.3/18.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.22/3.38Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 78% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 81% | 58% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 30K(Min.) | 17S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 51.9V (Typ.) | 120mA (Typ.) | 24.9/26.5W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 570/713mA (Typ./Max.) | 5.7/7.13W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-050A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
