LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY
LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

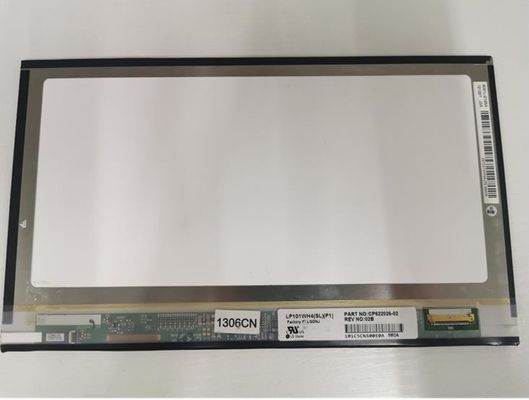

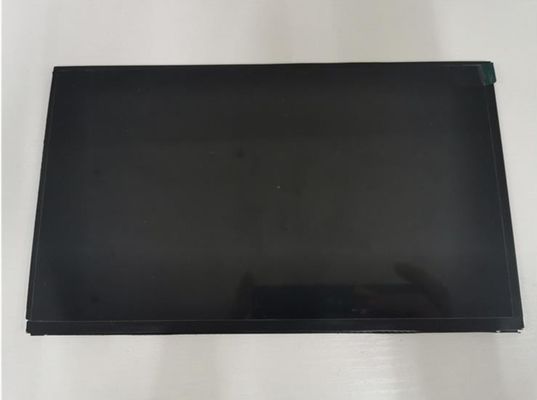

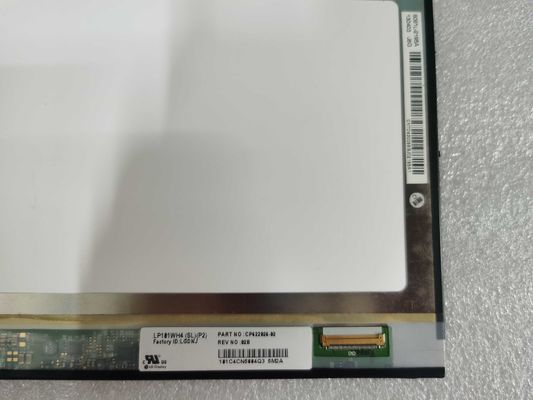

Large Image :  LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP101WH4-SLP1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 800PCS
Contact Now

LP101WH4-SLP1 LG Display 10.1" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP101WH4-SLP1 BRAND: LG DISPLAY
SIZE: 10.1INCH BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 (WXGA) 155PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

LP101WH4-SLP1 Industrial Lcd Panel

,

WLED Lamp LCD Display Panels

,

TFT LCD Display SVGA 119PPI

LG Display LP101WH4-SLP1 Application Details

Basic Info :
Panel Brand

LP101WH4-SLP1Panel Model
Diagonal Size
10.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP101WH4 (SL)(P1), LGD0398
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LP101WH4-SLP1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.0543×0.1629 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1629×0.1629 mm (H×V) [155PPI]
Mechanical Size :
Display Area
222.52×125.11 mm (H×V)
Bezel Area
-
Outline Dim.
232.8×138.15 mm (H×V)
Outline Depth
2.4/4.35 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Without
Other Features :
Weight
125g (Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LP101WH4-SLP1 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.20/1.40 (Typ.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP101WH4-SLP1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
7.0/12.0/21.0V (Min./Typ./Max.)
Current Input
175/192mA (Typ./Max.)
Consumption
2.1/2.15W (Typ./Max.)



LG Display LP101WH4-SLP1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
166/194mA (Typ./Max.)
Consumption
0.55W (Typ.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20474-040E-12
0.4 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



LG Display LP101WH4-SLP1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
60 pcs / box - 478×365×328 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
