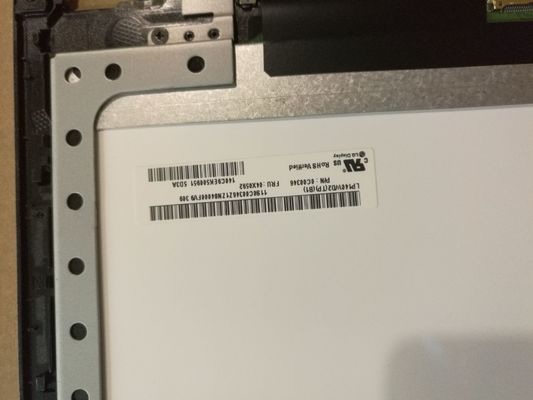

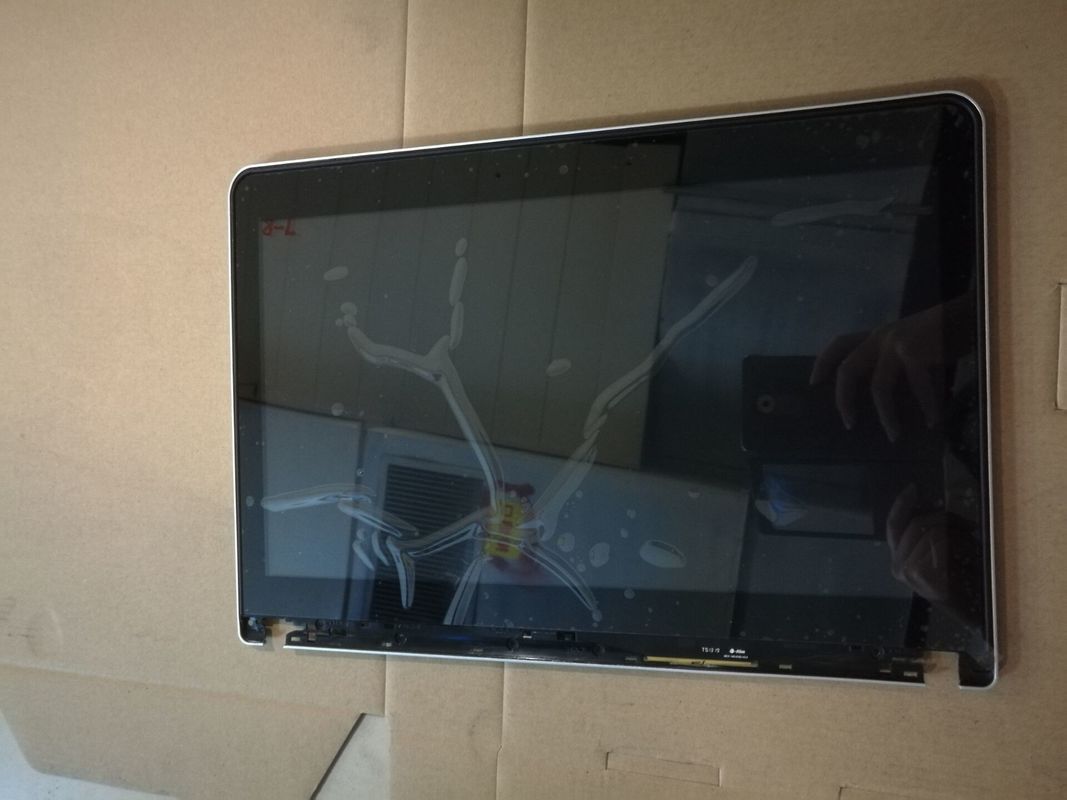

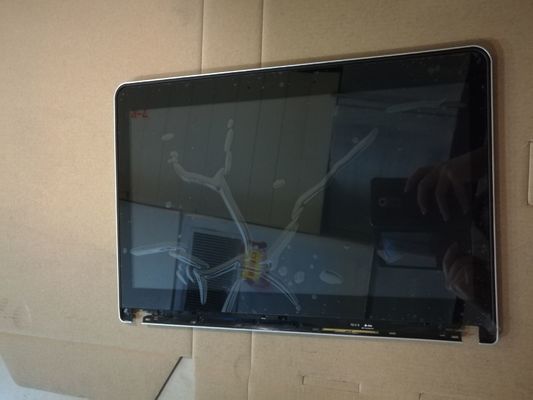

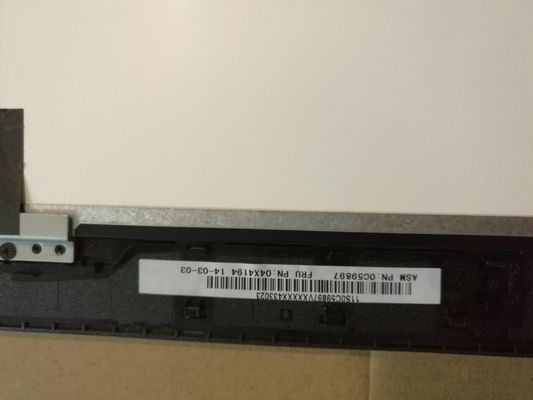

Product Details:
|
| MODEL NUMBER: | LP140WD2-TPB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×900, HD+, 131PPI |
| VIEWING ANGLEG: | 45/45/15/35 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 131PPI Square LCD Panel,Square LCD Panel 250cd/m2,LP140WD2-TPB1 Lcd Video Module |
||
| Basic Information : | Brand | Model | LP140WD2-TPB1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | LP140WD2 (TP)(B1), LGD03FC | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1600(RGB)×900, HD+ | Dot Pitch(mm) | 0.0644×0.1932 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1932×0.1932 (H×V) [131PPI] | |
| Mechanical Size : | Active Area(mm) | 309.12(H) × 173.88(V) | Bezel Area(mm) | 313.4(H) × 177.45(V) |
| Outline Dim.(mm) | 320.4(H) × 205.1(V) | Depth(mm) | 3.3/3.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Spec : | Weight | 320g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 16 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 365/420mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.2/1.4W (Typ./Max.) | |||||
| Signal Type : | eDP (1 Lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | KN38-30S-0.5H | 1 pcs | 30 pins | 0.5 mm | EDP-30P1L-030G | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 185/215mA (Typ./Max.) | ||
| Consumption | 2.2/2.6W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 478×365×328 mm (L×W×H) |
