Product Details:
|

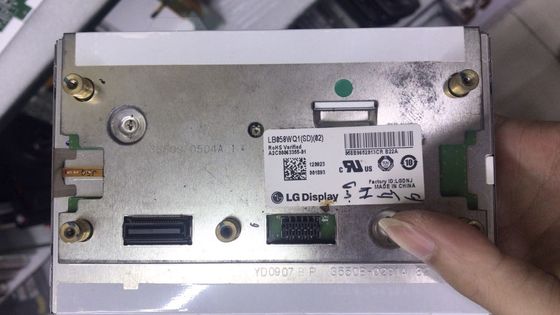

| MODEL NUMBER: | LB058WQ1-SD03 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 5.8INCH | BRIGHTNESS: | 470CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 400(RGB)×240, WQVGA, 80PPI |
| Display Area: | 126.36(W)×75.84(H) Mm | TEMPERATURE RANGE: | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 105 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LB058WQ1-SD03 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB058WQ1-SD03 | a-Si TFT-LCD , LCM | LB058WQ1 (SD)(03) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 80 °C | -40 ~ 105 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 470 (Min.) | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 630 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6517K | 262K (6-bit) | X:0.311; Y:0.338 | |
| White Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Panel Size : | 5.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 400(RGB)×240 [WQVGA] | RGB Vertical Stripe | 0.3159×0.316 [80PPI] | 0.1053×0.316 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 126.36(H) × 75.84(V) | 129.6(H) × 79.0(V) | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 275/300g (Typ./Max.) | - | Antiglare, Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S2P | 2 strings | 20K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
