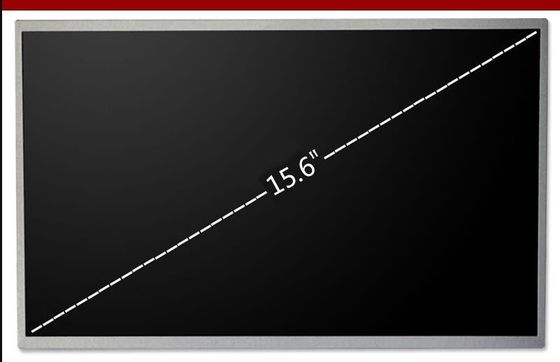

LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP156WH4-TLA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP156WH4-TLA1 BRAND: LG DISPLAY
SIZE: 15.6 Inch BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 100PPI
VIEWING ANGLEG: 40/40/10/30 (Min.)(CR≥10 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WLED TTL Industrial Lcd Display

,

WLED LVDS Lcd Video Panel

,

Hard Coating Industrial TFT Display

LG Display LP156WH4-TLA1 Application Details

Basic Info :
Panel Brand

LP156WH4-TLA1LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY 0 64 CompatiblePanel Model
Diagonal Size
15.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP156WH4 (TL)(A1), LGD02DC
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LP156WH4-TLA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.084×0.252 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.252×0.252 mm (H×V) [100PPI]
Mechanical Size :
Display Area
344.232×193.536 mm (H×V)
Bezel Area
350.0×197.1 mm (H×V)
Outline Dim.
359.3×209.5 mm (H×V)
Outline Depth
5.2/5.5 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Holes & Brackets :
Side mounting holes (8-M2) on left, right bezel
Other Features :
Weight
450g (Max.)
Surface
Glare (Haze 0%), Hard coating (3H)



LG Display LP156WH4-TLA1 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
40/40/10/30 (Min.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
16 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
75% coverage
Adobe RGB
59% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WH4-TLA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
4 strings
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
7.0/12.0/21.0V (Min./Typ./Max.)
Current Input
275/290mA (Typ./Max.)
Consumption
3.3/3.5W (Typ./Max.)



LG Display LP156WH4-TLA1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
275/320mA (Typ./Max.)
Consumption
0.9/1.1W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
IS050-L40B-C10
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



LG Display LP156WH4-TLA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
22 pcs / box - 450×370×278 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

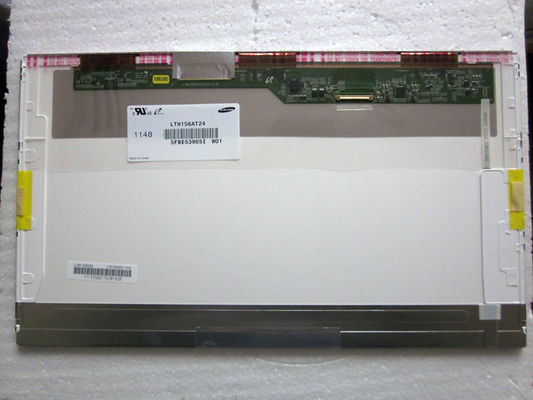

LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY 1
