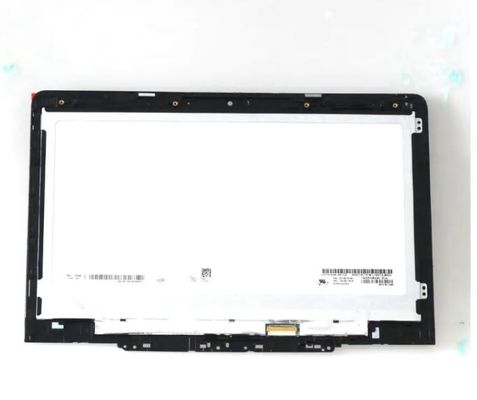

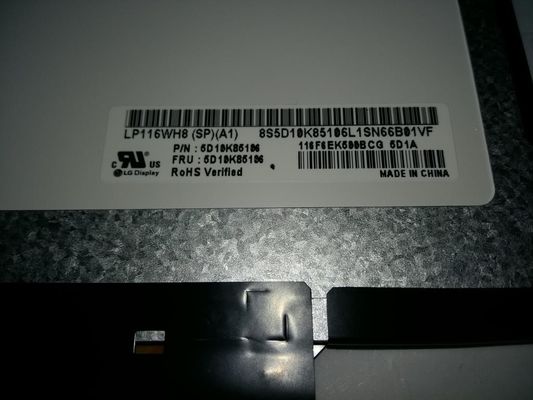

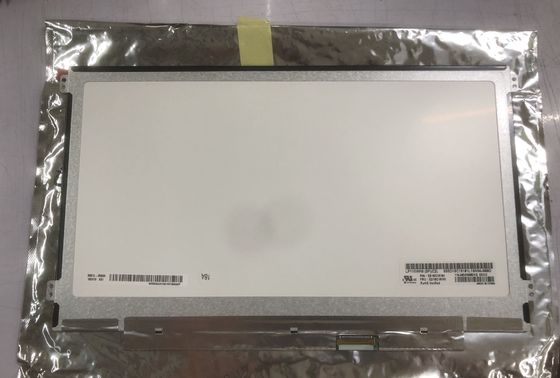

LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP116WH8-SPA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP116WH8-SPA1 BRAND: LG DISPLAY
SIZE: 11.6 INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 135PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WLED TTL Industrial Lcd Display

,

WLED LVDS Lcd Video Panel

,

Hard Coating Industrial TFT Display

LG Display LP116WH8-SPA1 Application Details

Basic Info :
Panel Brand

LP116WH8-SPA1Panel Model
Diagonal Size
11.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP116WH8 (SP)(A1), LGD0500
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LP116WH8-SPA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.0625×0.1875 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1875×0.1875 mm (H×V) [135PPI]
Mechanical Size :
Display Area
256.125×144 mm (H×V)
Bezel Area
260.15×147.5 mm (H×V)
Outline Dim.
278×168 mm (H×V)
Outline Depth
3.0/3.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Touch Screen :
Touch Points
10 points
TP Signal
I²C
TP Controller
With touch controller
Touchscreen
In-Cell Touch
Holes & Brackets :
Face mounting holes (4 pcs) on left, right slugs
Other Features :
Weight
200g (Max.)
Surface
Glare (Haze 0%)



LG Display LP116WH8-SPA1 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
35 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP116WH8-SPA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
150/153mA (Typ./Max.)
Consumption
1.80/1.83W (Typ.)



LG Display LP116WH8-SPA1 Interface Detail

Signal Systerm :
eDP (1 Lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
333/378mA (Typ./Max.)
Consumption
1.1/1.25W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20474-040E-12
0.4 mm
40 pins
1 pcs



LG Display LP116WH8-SPA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
48 pcs / box - 478×365×244 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
