Product Details:
|
| MODEL NUMBER: | LM270WF9-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 81PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED TTL Industrial Lcd Display,WLED LVDS Lcd Video Panel,Hard Coating Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | LM270WF9-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WF9 (SS)(A1) | |
| Panel Size | 27.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | LM270WF9-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WF9 (SS)(A1) | |
| Panel Size | 27.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 5 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1038×0.3114 mm | Pixel Pitch(W×H) | 0.3114×0.3114 mm [81PPI] | |
| Physical Size : | Active Viewing | 597.888(W)×336.312(H) mm | Overall Dim. | 608.8(W)×355.1(H) mm |
| Bezel Opening | - | Overall Depth | 9.8/15.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 2.35/2.47Kgs (Typ./Max.) | Surface | Hard coating (3H), Antireflection |
| Signal Electrical : | Input Current | 605/756mA (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.05W (Typ.) | Signal Interface | eDP (4 Lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-050B | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 10035WS-H06D | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||

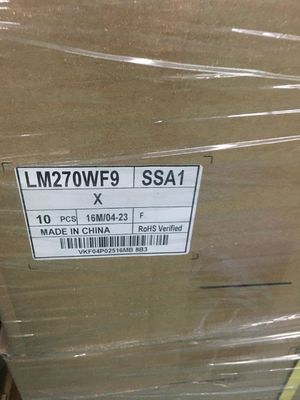

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 365×710×448 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
