LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY

LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY
LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM270WR8-SSA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS

LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM270WR8-SSA1 BRAND: LG DISPLAY
SIZE: 27.0INCH BRIGHTNESS: 450CD/M2
Lamp Type: WLED RESOLUTION: 3840(RGB)×2160, UHD, 163PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA Industrial TFT Display

,

RGB Vertical LCD Display

,

Capacitive TFT Touch Panel

LG Display LM270WR8-SSA1 Application Details

Basic Detail :
Manufacturer

LM270WR8-SSA1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM270WR8 (SS)(A1)
Panel Size
Designed For

  • LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY 0

  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM270WR8-SSA1 Optical Details

Basic Detail :
Luminance
450 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
5 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
94%
sRGB
100% coverage
Adobe RGB
87% coverage
DCI-P3
97% coverage
Rec.2020
71% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WR8-SSA1 Mechanical Details

Pixel Features :
Number of Pixel
3840(RGB)×2160, UHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0518×0.1554 mm
Pixel Pitch(W×H)
0.1554×0.1554 mm [163PPI]
Physical Size :
Active Viewing
596.736(W)×335.664(H) mm
Overall Dim.
603.9(W)×347.45(H) mm
Bezel Opening
-
Overall Depth
6.9/15.8 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
4-side borderless
Fixation :
Rear mounting holes
Other Detail :
Mass
3.25/3.41Kgs (Typ.)
Surface
Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WR8-SSA1 Interface Detail

Signal Electrical :
Input Current
0.85/1.06A (Typ./Max.)
Input Voltage
10.0V (Typ.)
Consumption
8.5/10.62W (Typ./Max.)
Signal Interface
eDP (4 ch, 4 Lanes), HBR2 (5.4G/lane)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
0.4 mm
60 pins
2 pcs



LG Display LM270WR8-SSA1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
22.9±0.8V
Input Current
75/80mA (Typ./Max.)
Consumption
27.5/28.4W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
1.0 mm
10 pins
2 pcs
BLE-10PINS-CCCCAACCCC
Backlight Driver :
No

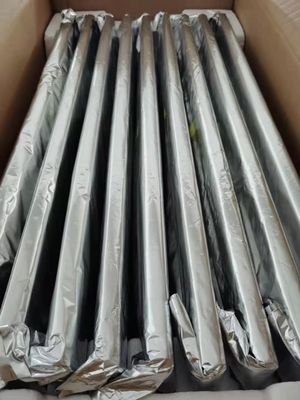

LG Display LM270WR8-SSA1 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box - 365×710×468 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY 1LM270WR8-SSA1 LG Display 27.0" 3840(RGB)×2160 450 cd/m² INDUSTRIAL LCD DISPLAY 2
