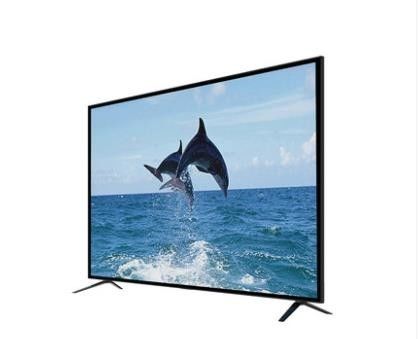

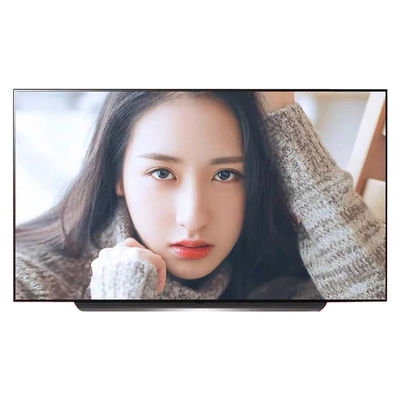

Product Details:
|
| MODEL NUMBER: | LC750EQF-FLM3 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 75 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 59PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WVGA Industrial TFT Display,RGB Vertical LCD Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LC750EQF-FLM3 | a-Si TFT-LCD , LCM | LC750EQF (FL)(M3) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 75" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.1432×0.4296 mm | 0.4296×0.4296 mm [59PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1649.66×927.936 mm | 1652.6×931.5 mm | 1681.4×968.2 mm | 35.4 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 27.5/28.9Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 5 (Typ.)(G to G); 8 (Typ.)(MPRT) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9966K | 16.7M/1.07B (8-bit / 8-bit + Dithering) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 87% | 100% | 80% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 88% | 64% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.54 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 86/93.6/99.2V (Min./Typ./Max.) | 100±5mA | 112.3W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | HS100-L14N-N62 | 1 pcs | 14 pins | 1.0 mm | ||
| UJU | HS100-L14N-N62-A | 1 pcs | 14 pins | 1.0 mm | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.85/1.1A (Typ./Max.) | 10.8/10.4W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| V-by-One 16 lane | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RXE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| YEONHO | 20037WR-H05 | 1 pcs | 5 pins | 2.0 mm | ||
| JAE | FI-RXE41S-HF | 1 pcs | 41 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 9 pcs / box |
