Product Details:
|
| MODEL NUMBER: | LM340UW4-SSA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 34 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3440(RGB)×1440 109PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 3440×1440 Square Tft Display,Square Tft Display 300cd/m2,34in Lcd Video Module |
||
| Basic Detail : | Manufacturer | Model Name | LM340UW4-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM340UW4 (SS)(A1) | |
| Panel Size | 34 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3440(RGB)×1440 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0775×0.2535 mm | Pixel Pitch(W×H) | 0.2325×0.2325 mm [109PPI] | |
| Physical Size : | Active Viewing | 799.8(W)×334.8(H) mm | Overall Dim. | 809.55(W)×354.7(H) mm |
| Bezel Opening | - | Overall Depth | 9.7/17.1 (Typ./Max.) mm | |

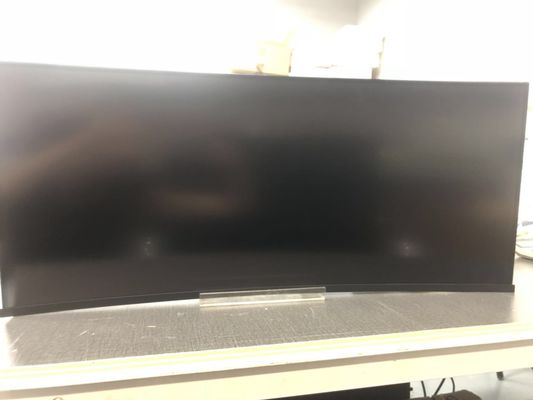

| Outline Features : | Form Shape | Curved Display, R1900 | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 3-side borderless | |
| Other Detail : | Mass | 4.35/4.57Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 1.04/1.29A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.4/12.9W (Typ./Max.) | Signal Interface | eDP (2 ch, 4 Lanes), HBR1 (2.7G/lane) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | |||
| Lamp Features: | Lamp Shape | 4 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings × 2CN | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 125/130mA (Typ./Max.) | Input Voltage | 35.6±2.4V | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 20037WR-H12 | 1 pcs | 2.0 mm | 12 pins | BLE-12PINS-CCAACCCCAACC | |

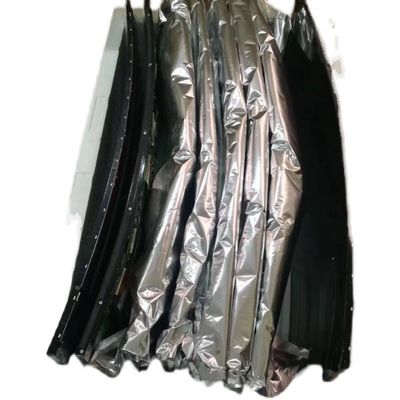

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 11 pcs / box | 934×542×450 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
