LC216EXN-SDA1 LG Display 21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI

LC216EXN-SDA1 LG Display  21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI
LC216EXN-SDA1 LG Display  21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI LC216EXN-SDA1 LG Display  21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI LC216EXN-SDA1 LG Display  21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI

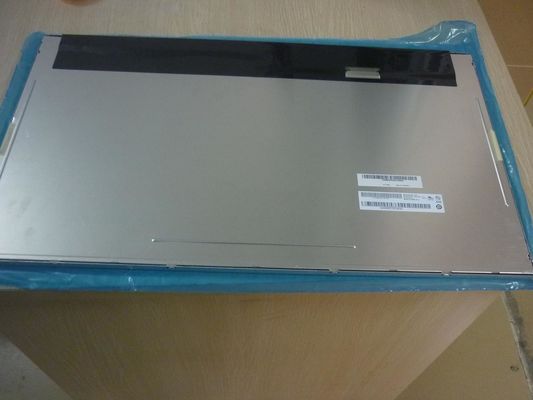

Large Image :  LC216EXN-SDA1 LG Display 21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LC216EXN-SDA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 160PCS

LC216EXN-SDA1 LG Display 21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI

Description
MODEL NUMBER: LC216EXN-SDA1 BRAND: LG Display
SIZE: 21.6 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 [WXGA] 72PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

1366×768 Square Tft Display

,

72PPI NEC TFT Display

LG Display LC216EXN-SDA1 Application Features

Basic Information : Brand Name Model Name Type Model Alias

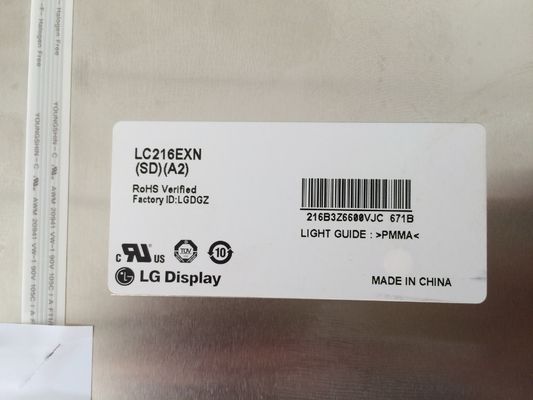

  LC216EXN-SDA1 a-Si TFT-LCD , LCM LC216EXN (SD)(A1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LC216EXN-SDA1 Mechanical Features

Screen Size : 21.6"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1366(RGB)×768, WXGA RGB Vertical Stripe 0.1165×0.3495 mm 0.3495×0.3495 mm [72PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
477.417×268.416 mm 481.5×272.5 mm 501×297 mm 12.7 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
1.42/1.50Kgs (Typ./Max.) - Antiglare (Haze 13%), Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel



LG Display LC216EXN-SDA1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
300 cd/m² (Typ.) IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Min.)(CR≥10) 6 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
9972K 16.7M (6-bit + Hi-FRC) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
69% 92% 71%
DCI-P3 Coverage Rec.2020 Coverage Remarks
71% 51% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.30 (Max.)(5 points)



LG Display LC216EXN-SDA1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 30K(Min.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM14B-SRSS-TB 1 pcs 14 pins 1.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
24.0±1.2V 0.87/0.97A (Typ./Max.) 20.9/22.2W (Typ./Max.)



LG Display LC216EXN-SDA1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0±0.5V 630/819mA (Typ./Max.) 3.15/4.1W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS KDF71G-30S-1H 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-262A

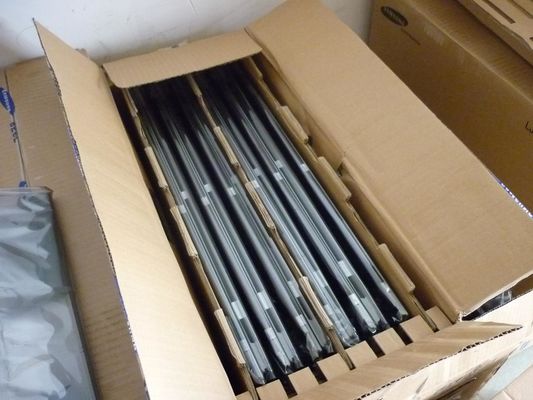

LG Display LC216EXN-SDA1 Packing Features

Package Box : Amount Weight Size (L×W×H)
12 pcs / box - 555×315×408 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



LC216EXN-SDA1 LG Display  21.6 inch 1366×768 300 cd/m² INDUSTRIAL LCD DISPLAY 72PPI 0
