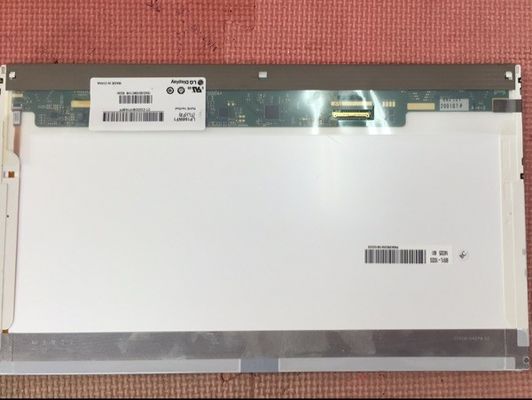

LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI

LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI
LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI

Large Image :  LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP156WF1-TLC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 160PCS
Contact Now

LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI

Description
MODEL NUMBER: LP156WF1-TLC1 BRAND: LG Display
SIZE: 15.6 Inch BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 141PPI
VIEWING ANGLEG: 60/60/50/50 (Min.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

QVGA Square Tft Display

,

141PPI NEC TFT Display

LG Display LP156WF1-TLC1 Application Details

Basic Information :
Brand

LP156WF1-TLC1LP156WF1-TLC1 LG Display 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY 141PPI 0 20 CompatibleModel
Type
a-Si TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
LP156WF1 (TL)(C1), LGD01E9
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LP156WF1-TLC1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
349.8(H) × 197.1(V)
Outline Dim.(mm)
359.3(H) × 209.5(V)
Depth(mm)
5.4/5.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (8-M2) on left, right bezel
Other Spec :
Weight
450/470g (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating (3H)



LG Display LP156WF1-TLC1 Optical Details

Basic Information :
Luminance(cd/m²)
220 (Typ.)
Contrast Ratio
400:1 (Min.) (Transmissive)
Viewing Angle
60/60/50/50 (Min.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
8 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
64%
sRGB
90% coverage
Adobe RGB
67% coverage
DCI-P3
67% coverage
Rec.2020
48% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WF1-TLC1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
530/610mA (Typ./Max.)
Consumption
1.74/2.0W (Typ./Max.)
Signal Type :
LVDS (2 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-02
0.5 mm
40 pins
1 pcs
LVDS-40P2C6B-010H



LG Display LP156WF1-TLC1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
433/500mA (Typ./Max.)
Consumption
5.2W (Typ.)



LG Display LP156WF1-TLC1 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 482×390×275 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
