LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY

LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY
LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY

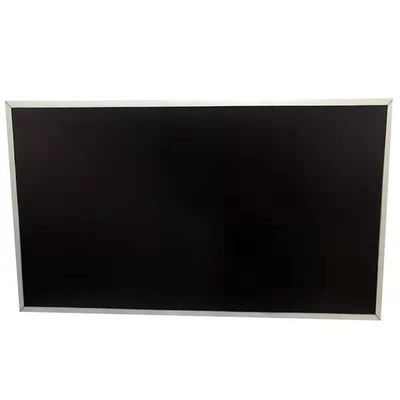

Large Image :  LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LD860EQD-FLM2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS

LD860EQD-FLM2 LG Display 86" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LD860EQD-FLM2 BRAND: LG Display
SIZE: 86 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 3840(RGB)×2160 (UHD) 51PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

LG Display LD860EQD-FLM2 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  LD860EQD-FLM2 a-Si TFT-LCD , LCM LD860EQD (FL)(M2)
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LD860EQD-FLM2 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
350 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 8 (Typ.)(G to G)
Best View on Display Mode Contrast Ratio
Symmetry IPS, Normally Black, Transmissive 1200 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
9972K 16.7M/1.07B (8-bit / 8-bit + Dithering) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 97% 73%
DCI-P3 Coverage Rec.2020 Coverage Remarks
73% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.67 (Max.)(9 points)



LG Display LD860EQD-FLM2 Mechanical Features

Panel Size : 86"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
3840(RGB)×2160 [UHD] RGB Vertical Stripe 0.4935×0.4935 [51PPI] 0.1645×0.4935
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
1895.04(H) × 1065.96(V) 1897.6(H) × 1068.6(V) 1922.2(H) × 1093.2(V) 27.1 (Typ.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V)
Other Detail : Weight Panel Cover Treatment
35.1/38.6Kgs (Typ./Max.) - Antiglare (Haze 28%), Hard coating (3H)



LG Display LD860EQD-FLM2 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 50K(Typ.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
YEONHO 20022WR-H14B2 2.0 mm 14 pins 1 pcs
YEONHO 20022WR-H12B2 2.0 mm 12 pins 1 pcs
Driver Electrical : Voltage Supply Current Supply Power Consumption
24±2.4V 9.53/10.4A (Typ./Max.) 228.8/247.9W (Typ./Max.)



LG Display LD860EQD-FLM2 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
12.0V (Typ.) 0.95/1.24A (Typ./Max.) 11.4/14.8W (Typ./Max.)
Interface Features : Position Signal Type
- V-by-One 16 lane Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JAE FI-RXE51S-HF 0.5 mm 51 pins 1 pcs
JAE FI-RXE41S-HF 0.5 mm 41 pins 1 pcs



LG Display LD860EQD-FLM2 Packing Features

Package Box : Quantity Weight Box Size
8 pcs / box - 2280×780×1430 mm (L×W×H)
