LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m²  INDUSTRIAL LCD DISPLAY
LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m²  INDUSTRIAL LCD DISPLAY LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m²  INDUSTRIAL LCD DISPLAY LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m²  INDUSTRIAL LCD DISPLAY

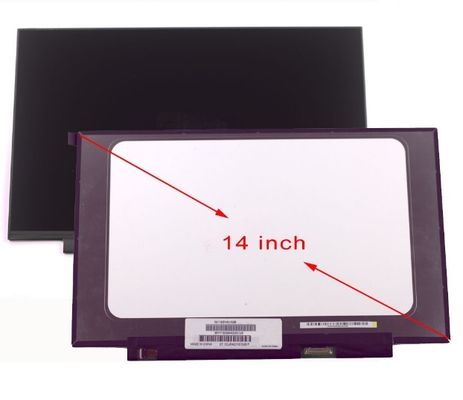

Large Image :  LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP140WFA-SPD3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

LP140WFA-SPD3 LG Display 14.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP140WFA-SPD3 BRAND: LG Display
SIZE: 14.0 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 157PPI
VIEWING ANGLEG: 80/80/80/80 (Min.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display



LG Display LP140WFA-SPD3 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  LP140WFA-SPD3 a-Si TFT-LCD , LCM LP140WFA (SP)(D3), LGD060F
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LP140WFA-SPD3 Mechanical Features

Screen Size : 14.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.0537×0.1611 mm 0.1611×0.1611 mm [157PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
309.31×173.99 mm - 315.81×198.07 mm 3.0 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Slim (PCBA Flat, T≤3.2mm)
Other Spec : Mass Panel Cover Surface Treatment
280g (Max.) - Antiglare
Holes & Brackets : Without



LG Display LP140WFA-SPD3 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) IPS, Normally Black, Transmissive 700:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 80/80/80/80 (Min.)(CR≥10) 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
45% 63% 47%
DCI-P3 Coverage Rec.2020 Coverage Remarks
47% 34% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.40/1.60 (Max.)(5/13 points)



LG Display LP140WFA-SPD3 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 15K(Min.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in panel signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
5.0/12.0/21.0V (Min./Typ./Max.) 198/205mA (Typ./Max.) 2.37/2.46W (Typ./Max.)



LG Display LP140WFA-SPD3 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 190/212mA (Typ./Max.) 0.63/0.7W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS KN38B-30S-0.5H 1 pcs 30 pins 0.5 mm EDP-30P2L-020A





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
