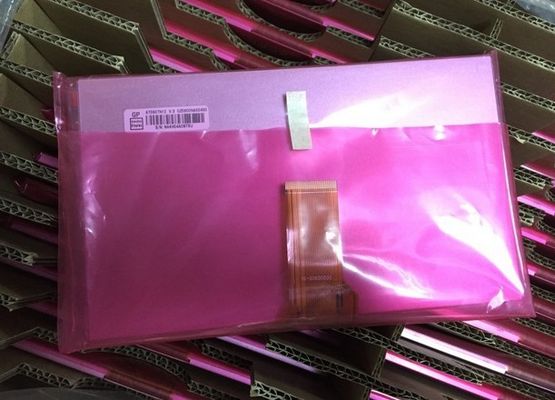

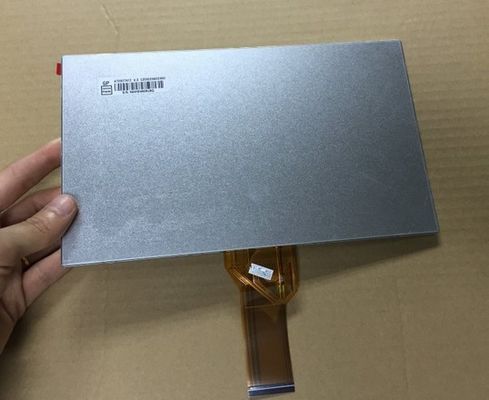

Product Details:
|
| MODEL NUMBER: | ZJ090NA-03B | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 9.0"inch | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 [WVGA] 104PPI |
| VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| ZJ090NA-03B | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 80 °C | -30 ~ 80 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 9.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.2475×0.2327 [104PPI] | 0.0825×0.2327 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 198(H) × 111.696(V) | 201.0(H) × 114.7(V) | 211.1(H) × 126.5(V) | 5.9±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 262g (Typ.) | - | Antiglare | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 5.01W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 15/15.5/15.9V (Min./Typ./Max.) | 300±15mA | 4.65W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) | 5.5/32/0.3/0.3mA (Typ.)(DIDD/AIDD/IGH/IGL) | 0.36W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
