Product Details:
|

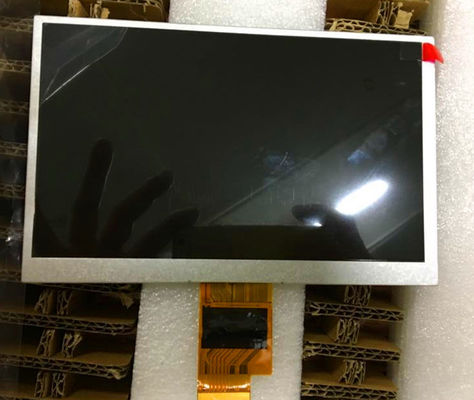

| MODEL NUMBER: | ZJ070NA-01P | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 500CD/M2 |
| VIEWING ANGLEG: | 75/75/70/75 (Typ.)(CR≥10 | Lamp Type: | WLED |
| RESOLUTION: | 1024(RGB)×600, WSVGA, 169PPI | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | ZJ070NA-01P | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 1024(RGB)×600 [WSVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.050×0.150 mm | Pixel Pitch(W×H) | 0.150×0.150 mm [169PPI] | |
| Physical Size : | Active Viewing | 153.6(W)×90(H) mm | Overall Dim. | 165.75(W)×105.39(H) mm |
| Bezel Opening | 156.4(W)×92.8(H) mm | Overall Depth | 4.80±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 17:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 156g | Surface | Glare (Haze 0%) |
| Signal Electrical : | Input Current | 38/20/0.25/0.25mA (Typ.)(IDVDD/IAVDD/IGH/IGL) | Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.35W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 240/300mA (Typ./Max.) | Input Voltage | 9.9/10.5V (Typ./Max.) | ||
| Consumption | 2.38W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
