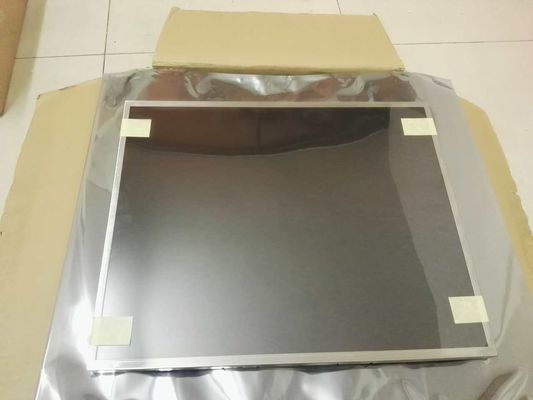

Product Details:
|
| MODEL NUMBER: | R190EFE-L61 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 19.0INCH | BRIGHTNESS: | 650CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×1024 [SXGA] 86PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Information : | Brand | Model | R190EFE-L61 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 19.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) [86PPI] | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.3(H) × 305.0(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 19.8/20.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Spec : | Weight | 1.87/2.07Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 650 (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | DD-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 15/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.41/0.58A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.92/6.89W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAKT2407P30A | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160H | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 38.4/43.2V (Typ./Max.) | Current Supply | 150mA (Typ.) | ||
| Consumption | 25.6/28.8W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FCN | JH2-D2-143N | 1 pcs | 14 pins | 2.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 24.0±2.4V | Current Supply | 1.1/1.04A (Typ./Max.) | ||
| Consumption | 23.04/25.9W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 11 pcs / box | 23.85 Kgs | 567×477×416 mm (L×W×H) |
