PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

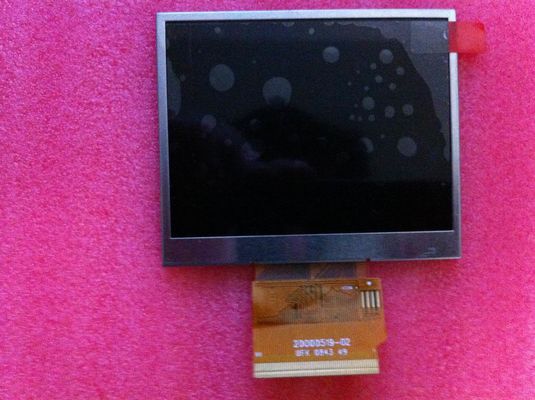

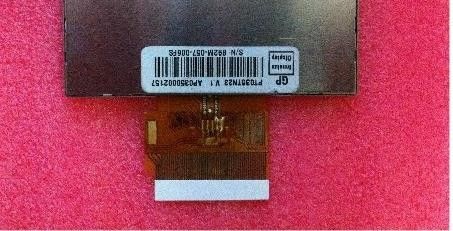

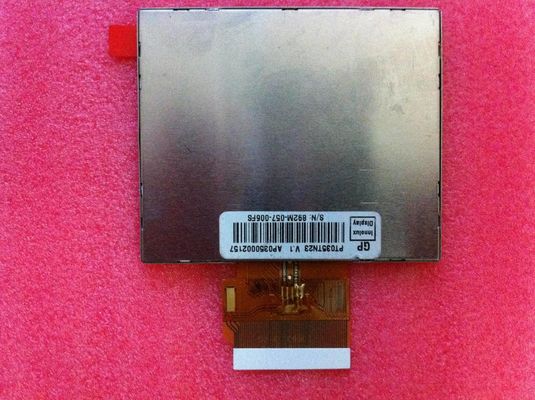

PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: PT035TN23 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: PT035TN23 V.1 BRAND: INNOLUX
SIZE: 3.5 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 320(RGB)×240 [QVGA] 115PPI
VIEWING ANGLEG: 65/65/50/65 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux PT035TN23 V.1 Application Details

Basic Info : Panel Brand   Panel Model PT035TN23 V.1
Diagonal Size 3.5" Application





  •
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C



Innolux PT035TN23 V.1 Mechanical Details

Pixel Features : Pixel Format 320(RGB)×240 [QVGA] Dot Pitch 0.073×0.219 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.219×0.219 mm (H×V) [115PPI]
Mechanical Size : Display Area 70.08×52.56 mm (H×V) Bezel Area 72.08×54.56 mm (H×V)
Outline Dim. 76.9×64.4 mm (H×V) Outline Depth 4.23±0.2 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Other Features : Weight 43.0g (Typ.) Surface Antiglare



Innolux PT035TN23 V.1 Optical Details

Basic Information : Brightness 350 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 65/65/50/65 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 9/16 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K (6-bit)
Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)





Innolux PT035TN23 V.1 Backlight Details

Back-light Features: Lamp Shape 1 string Lamp Type WLED Life Time 20K(Min.) (Hours)
Replacement - Amount 6S1P Position Edge light type
Lamp Electrical : Voltage Input 19.8±1.2V Current Input 20±2mA
Consumption 396mW (Typ.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver



Innolux PT035TN23 V.1 Interface Details

Signal Systerm : Parallel RGB (1 ch, 6-bit) + SPI Logic Voltage 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 12/18mA (Typ./Max.)
Consumption 40mW (Typ.)
Interface Features : Type FPC Position -
FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
    0.5 mm 60 pins 1 pcs
