Product Details:
|

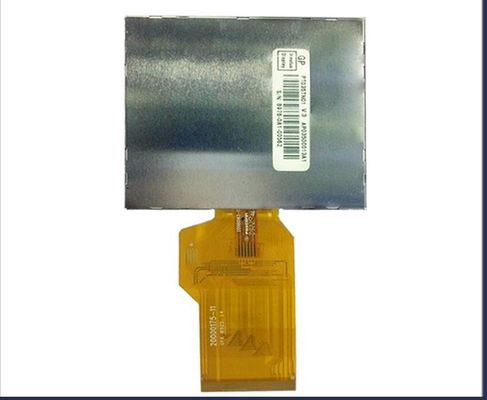

| MODEL NUMBER: | PT035TN01 V.3 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 3.5 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 320(RGB)×240 (QVGA) 115PPI |
| VIEWING ANGLEG: | 65/65/45/65 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | PT035TN01 V.3 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 3.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, TMR | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.073×0.219 mm | Pixel Pitch(W×H) | 0.219×0.219 mm [115PPI] | |
| Physical Size : | Active Viewing | 70.08(W)×52.56(H) mm | Overall Dim. | 78.2(W)×65(H) mm |
| Bezel Opening | 73.1(W)×55.6(H) mm | Overall Depth | 3.5±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 35.0g (Typ.) | Surface | Hard coating |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 20mW (Typ.) | Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S1P | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 18/20/22mA (Min./Typ./Max.) | Input Voltage | 18.6/19.8/21V (Min./Typ./Max.) | ||
| Consumption | 396mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
