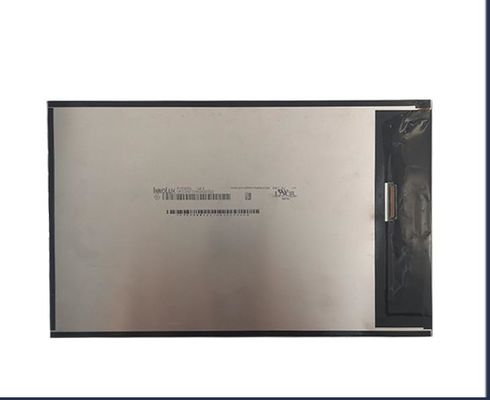

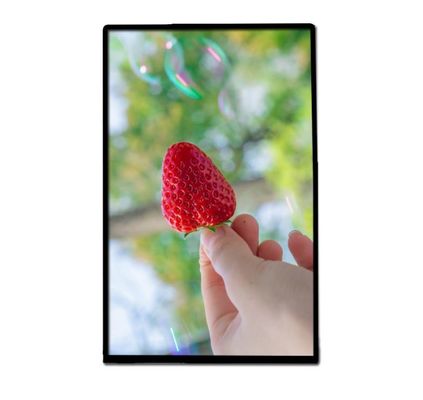

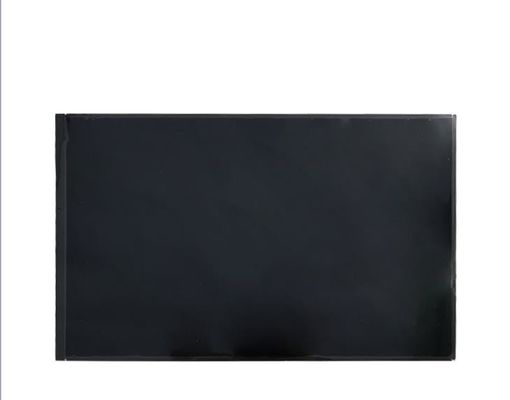

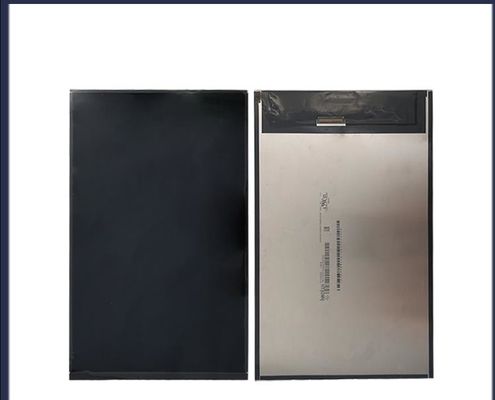

Product Details:
|
| MODEL NUMBER: | P101SFA-AF0 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×2560, WQXGA, 300PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | P101SFA-AF0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.310 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7525K | White Uniformity | 1.18/1.33 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 99% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1600(RGB)×2560 [WQXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0282×0.0846 mm | Pixel Pitch(W×H) | 0.0846×0.0846 mm [300PPI] | |
| Physical Size : | Active Viewing | 135.36(W)×216.58(H) mm | Overall Dim. | 142.96(W)×228.037(H) mm |
| Bezel Opening | - | Overall Depth | 2.05/3.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 120g (Max.) | Surface | Hard coating |
| Signal Electrical : | Input Current | 40/45/25mA (Max.)(IDD/ISP/ISN) | Input Voltage | 1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN) | ||
|---|---|---|---|---|---|---|
| Consumption | 465mW (Max.) | Signal Interface | MIPI (2 ch, 4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH26W-61S-0.3SHW(60) | 1 pcs | 0.3 mm | 61 pins | ||
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S6P | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 17.4/19.2V (Typ./Max.) | ||
| Consumption | 2.3W (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
