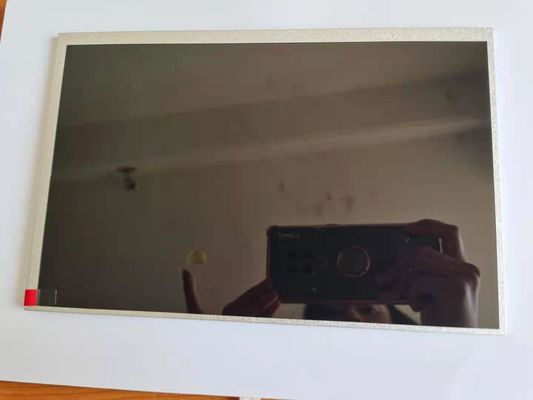

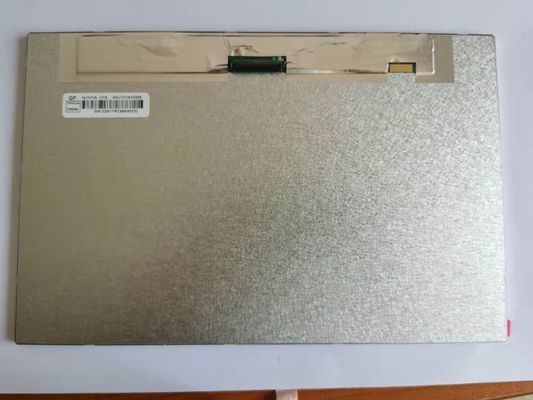

Product Details:
|
| MODEL NUMBER: | P101KDA-AB0 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 440 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1200(RGB)×1920 [WUXGA] 225PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | P101KDA-AB0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Basic Information : | Luminance | 440 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 1200(RGB)×1920 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0376×0.1128 mm | Pixel Pitch(W×H) | 0.1128×0.1128 mm [225PPI] | |
| Physical Size : | Active Viewing | 135.36(W)×216.576(H) mm | Overall Dim. | 143(W)×227.926(H) mm |
| Bezel Opening | - | Overall Depth | 2.5/4.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 144g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Signal Electrical : | Input Current | 0.15A (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20718-051E-01 | 1 pcs | 0.3 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 21mA (Typ.) | Input Voltage | |||
| Consumption | 1.99/2.06W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 36 pcs / box | 590×390×320 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
