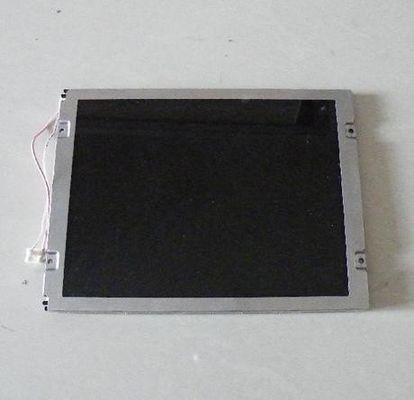

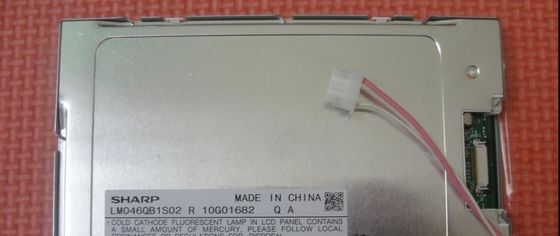

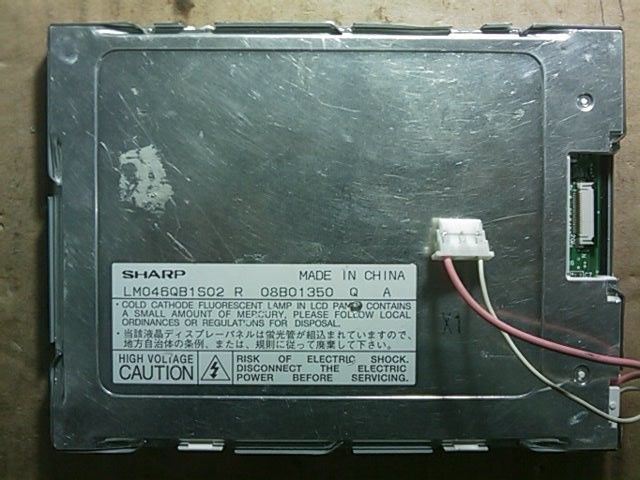

Product Details:
|
Model Name: | LM046QB1S02 | Screen Size: | 4.6 Inch |
---|---|---|---|
Screen Type: | LCM , FSTN-LCD | Luminance: | 100 (Typ.)(cd/m²) |
Outline(mm): | 134 × 100 (H×V×D) | Pixel Number: | 320×240 (QVGA) 86PPI |
Backlight: | 1 Pcs CCFL , 30K Hours , No Driver | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C |
High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
Basic Information : | Luminance(cd/m²) | 100 (Typ.) | Contrast Ratio | 4:1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) |
---|---|---|---|---|
Viewing Angle | 35/25/30/25 (Typ.)(CR≥2) | Display Mode | STN, Black/White (Positive), Transflective | |
Best View on | - | Response(ms) | 180/270 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | - | Display Colors | Monochrome |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Pixel Features : | Resolution | 320×240, QVGA | Dot Pitch(mm) | 0.295×0.295 (H×V) |
---|---|---|---|---|
Pixel Format | Rectangle | Pixel Pitch(mm) | 0.295×0.295 (H×V) [86PPI] | |
Mechanical Size : | Active Area(mm) | 94.39(H) × 70.79(V) | Bezel Area(mm) | 97.8(H) × 74.2(V) |
Outline Dim.(mm) | 134(H) × 100(V) | Depth(mm) | 8.50 | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
Other Spec : | Weight | 140g | Treatment | - |
Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type |
---|---|---|---|---|---|---|
Replacement | - | Quantity | 1 pcs | Life Time | 30K(Min.) (Hours) | |
Lamp Electrical : | Voltage Supply | 355±5V | Current Supply | 2.0/2.2/2.5mA (Min./Typ./Max.) | ||
Frequency | 40/100KHz (Min./Max.) | Startup Voltage | 1500/1820V (Max.)(Ta=+25/0℃) | |||
Consumption | 0.72/0.78/0.88W (Min./Typ./Typ.) | |||||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
Backlight Driver : | No |
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.3mA (Typ.) | ||
---|---|---|---|---|---|---|
Consumption | 140/210mW (Typ./Max.) | |||||
Signal Type : | Parallel Data (4-bit) | Signal Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
IRISO | IMSA-9632S-20A-T | 1 pcs | 20 pins | 0.5 mm |
LM046QB1S02 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 94.39(W)×70.79(H) mm, outline size of 134(W)×100(H) mm, viewing area size of 97.8(W)×74.2(H) mm, net weight of 140g. As a STN, Black/White (Positive), Transflective LCM product, LM046QB1S02 can provides 100 cd/m² display brightness 4:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 180/270 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors.
