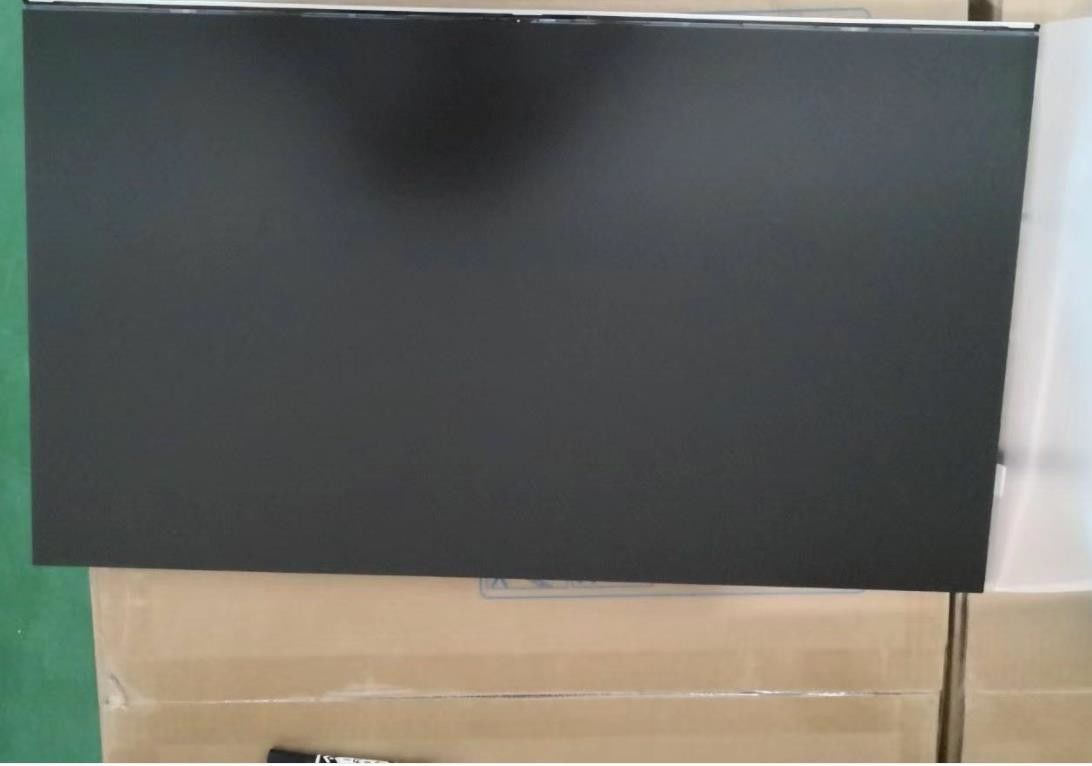

1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z

1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z
1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z 1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z 1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z

Large Image :  1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M238HCA-L5Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

1920×1080 RGB Symmetry 250nits TFT LCD Panel NTSC M238HCA-L5Z

Description
MODEL NUMBER: M238HCA-L5Z BRAND: INNOLUX
SIZE: 23.8 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 92PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

Symmetry 250nits TFT LCD Panel

,

1920×1080 RGB TFT LCD Panel

,

NTSC Lcd Display Panels

Innolux M238HCA-L5Z Application Features

Basic Information : Brand Model Type Model Alias
  M238HCA-L5Z a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  0 ~ 50 °C -20 ~ 60 °C



Innolux M238HCA-L5Z Mechanical Features

Panel Size : 23.8 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.0915×0.2745 mm 0.2745×0.2745 mm [92PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
527.04×296.46 mm - 535×313 mm 6.75/13 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type 3-side borderless

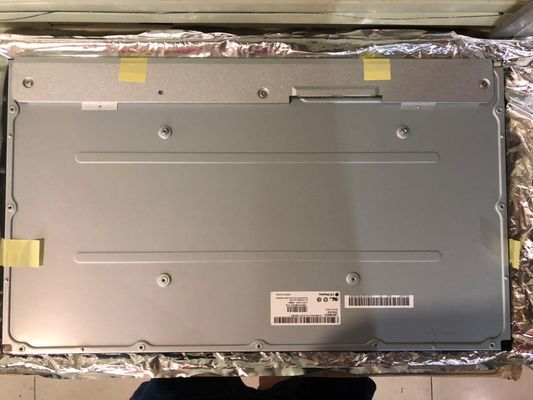

Fixation : Rear mounting holes (15-M3)
Other Features : Panel Cover Weight Surface
- 2.27Kgs (Typ.) Antiglare (Haze 25%), Hard coating (3H)



Innolux M238HCA-L5Z Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
250 cd/m² (Typ.) AAS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 8/7 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 93% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
74% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33 (Max.)(9 points)



Innolux M238HCA-L5Z Interface Features

Signal Electrical : Current Input Voltage Input Consumption
0.53/0.62A (Typ./Max.) 5.0V (Typ.) 3.48/3.97W (Typ./Max.)
Interface Features : Position Type Interface
  Connector LVDS (2 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
FOXCONN GS23301-0321R-7H 1 pcs 1.0 mm 30 pins



Innolux M238HCA-L5Z Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 40K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
100±5mA 25.9/29/32V (Min./Typ./Max.) 116/12.8W (Typ./Max.)
Interface Features : Position Type WLED Driver
  Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
CviLux CI1406M1VL0-NH 1 pcs 1.0 mm 6 pins BLE-6PINS-CCAACC

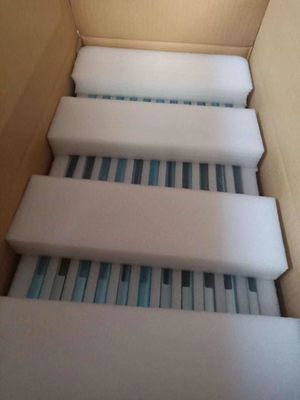

Innolux M238HCA-L5Z Packing Features

Package Carton : Amount Weight Carton Size
12 pcs / box 28.8 Kgs 620×348×390 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
