Product Details:
|

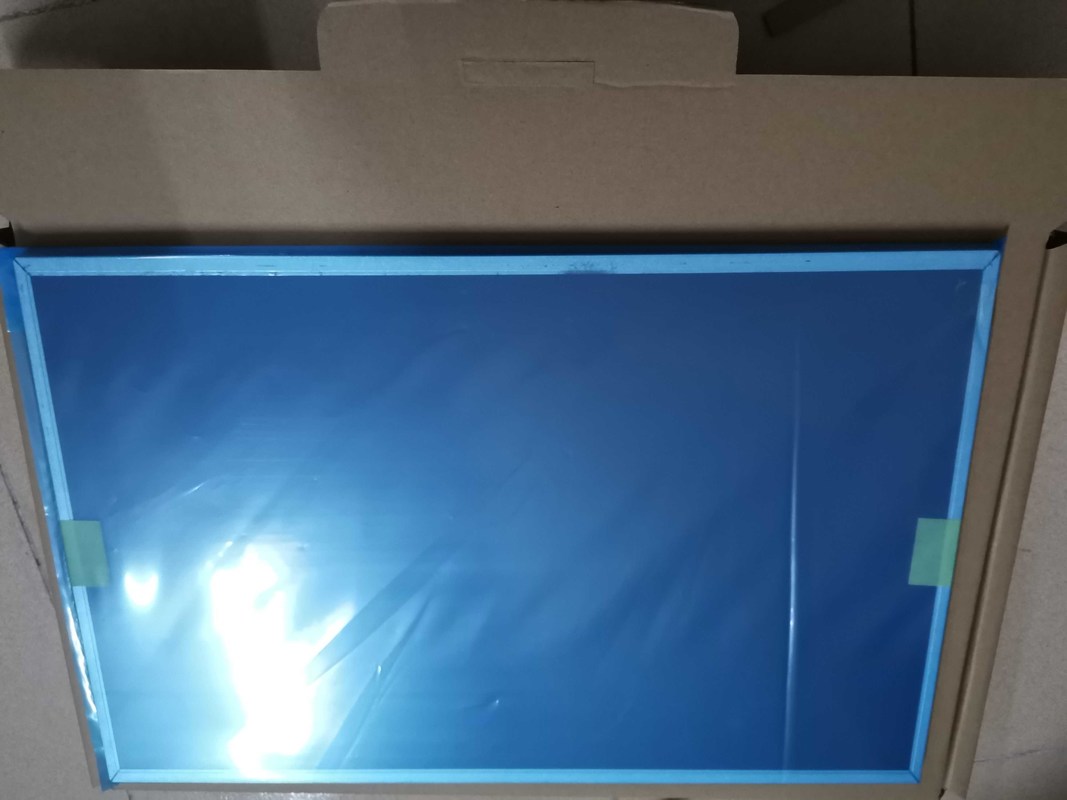

| MODEL NUMBER: | M220Z1-L03 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 22.0 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1680(RGB)×1050 [WSXGA+] 90PPI |
| VIEWING ANGLEG: | 85/85/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | RGB 1680×1050 TFT LCD Panel,300nits TFT LCD Panel,CMO 22.0" Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | M220Z1-L03 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 22.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 1680(RGB)×1050, WSXGA+ | Dot Pitch(mm) | 0.094×0.282 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.282×0.282 (H×V) [90PPI] | |
| Mechanical Size : | Active Area(mm) | 473.76(H) × 296.1(V) | Bezel Area(mm) | 477.7(H) × 300.1(V) |
| Outline Dim.(mm) | 493.7(H) × 320.1(V) | Depth(mm) | 16.5/17.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M3) | |||
| Other Spec : | Weight | 2.82/2.87Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 1.3/3.7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 97% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 1.17/1.521A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.85/7.6W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-X30SSL-HF | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 820±82V | Current Supply | 3.0/7.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Startup Voltage | 1350/1550V (Max.)(Ta=+25/0℃) | |||
| Consumption | 22.96W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 35001HS-02L | 4 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
