Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ042T5DZ07 |
|---|---|---|---|
| Resolution: | 480×272(RGB), WQVGA, 131PPI | Panel Size: | 4.2INCH |
| Lamp Type: | WLED | Signal Interface: | CMOS (1 Ch, 6-bit) |
| Pixel Format: | RGB Horizontal Stripe | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Active Area: | 92.88(W)×52.632(H) Mm | ||
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ042 Series LQ042T5DZ13K LQ042T5DZ13A LQ042T5DZ11 LQ042T5DZ07

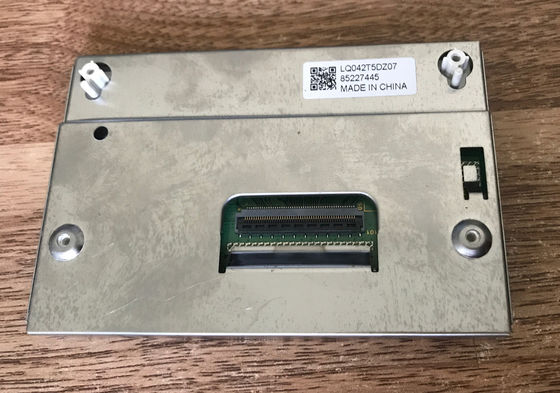

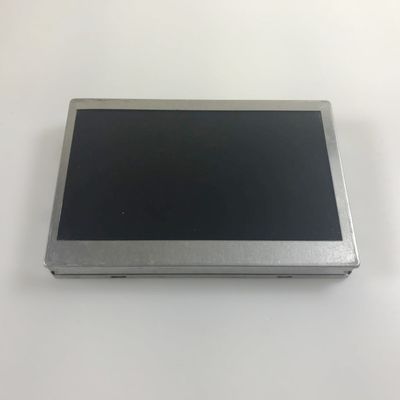

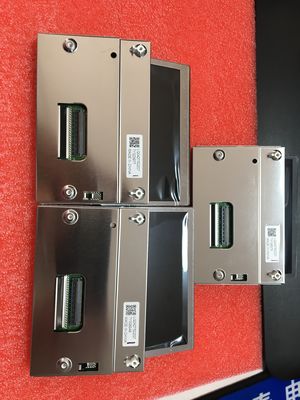

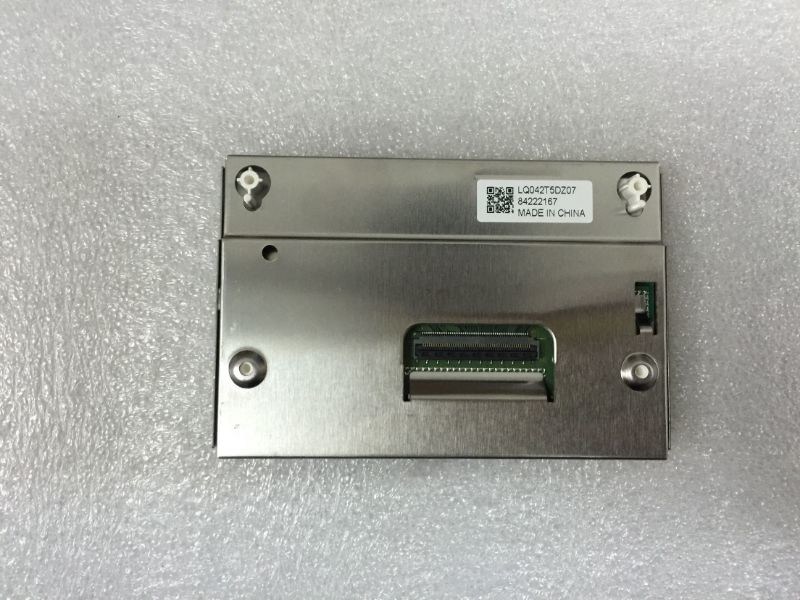

| Basic Detail : | Manufacturer | SHARP | Model Name | LQ042T5DZ07 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 4.2 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| Basic Information : | Luminance | - | Contrast Ratio | - |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | - | |
| Viewing Angle | - | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
| Pixel Features : | Number of Pixel | 480×272(RGB) [WQVGA] | Arrangement | RGB Horizontal Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1935×0.0645 mm | Pixel Pitch(W×H) | 0.1935×0.1935 mm [131PPI] | |
| Physical Size : | Active Viewing | 92.88(W)×52.632(H) mm | Overall Dim. | 102.5(W)×69(H) mm |
| Bezel Opening | - | Overall Depth | 12.0 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
