M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY

M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY
M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY

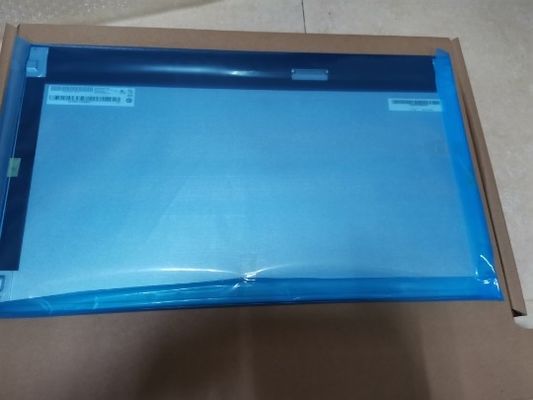

Large Image :  M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: M190Z1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

M190Z1-L01 CMO 19.0" 1680(RGB)×1050 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M190Z1-L01 BRAND: CMO
SIZE: 19.0INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1680(RGB)×1050, WSXGA+, 104PPI
VIEWING ANGLEG: 85/85/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

MO M190Z1-L01 Application Details

Basic Detail :
Manufacturer

M190Z1-L01Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
Vibration Leve

l



CMO M190Z1-L01 Mechanical Details

Pixel Features :
Resolution
1680(RGB)×1050, WSXGA+
Dot Pitch(mm)
0.081×0.243 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.243×0.243 (H×V) [104PPI]
Mechanical Size :
Active Area(mm)
408.24(H) × 255.15(V)
Bezel Area(mm)
412.24(H) × 259.15(V)
Outline Dim.(mm)
428(H) × 278(V)
Depth(mm)
16.7 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.84/1.88Kgs (Typ./Max.)
Treatment
Antiglare (Haze 25%), Hard coating (3H)



CMO M190Z1-L01 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
1.5/3.5 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.30/1.50 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
97% coverage
Adobe RGB
76% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



CMO M190Z1-L01 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No



CMO M190Z1-L01 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
770/1078mA (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



CMO M190Z1-L01 Backlight Details

Backlight Features :
Type
CCFL
Quantity
4 pcs
Position
Edge light type (Top and Bottom)
Replacement
-
Shape
Straight
Life Time
50K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
775/853V (Typ./Max.)
Current Supply
2.0/7.0/7.5mA (Min./Typ./Max.)
Frequency
40/80KHz (Min./Max.)
Startup Voltage
1500/1710V (Max.)(Ta=+25/0℃)
Consumption
21.7W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
YEONHO
3.5 mm
2 pins
4 pcs
BLL-2PINS-HL
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
