M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

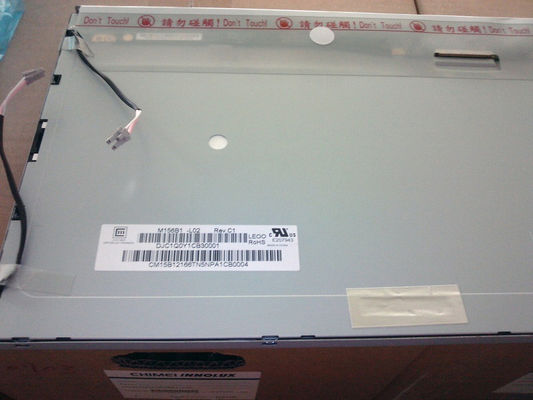

Large Image :  M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: M156B1-L02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M156B1-L02 BRAND: CMO
SIZE: 15.6 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 (WXGA) 100PPI
VIEWING ANGLEG: 85/85/80/80 (Typ.)(CR≥10 TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

CMO M156B1-L02 Application Features

Basic Information : Brand Name Model Name  4 Compatible Type Model Alias
  M156B1-L02 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



CMO M156B1-L02 Mechanical Features

Screen Size : 15.6"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1366(RGB)×768, WXGA RGB Vertical Stripe 0.084×0.252 mm 0.252×0.252 mm [100PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
344.232×193.536 mm 347.5×196.8 mm 363.8×215.9 mm 14.3±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Normal bezel
Other Spec : Mass Panel Cover Surface Treatment
1.30Kgs (Max.) - Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel



CMO M156B1-L02 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
- 85/85/80/80 (Typ.)(CR≥10) 2/6 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
68% 92% 71%
DCI-P3 Coverage Rec.2020 Coverage Remarks
71% 51% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.40/1.50 (Typ./Max.)(13 points)



CMO M156B1-L02 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No



CMO M156B1-L02 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
CCFL Edge light type (Top and Bottom) 50K(Typ.) 2 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
650±65V 3.0/7.0/8.0mA (Min./Typ./Max.) 9.1W (Typ.)
Operating Frequency Startup Voltage
50/55/60KHz (Min./Typ./Max.) 1100/1200V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO 35001HS-02L 2 pcs 2 pins 3.5 mm BLL-2PINS-HL





CMO M156B1-L02 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0V (Typ.) 430/480mA (Typ.) 2.15W (Typ.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STM MSAKT2407P30A 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-170A



CMO M156B1-L02 Packing Features

Package Box : Amount Weight Size (L×W×H)
10 pcs / box 15.7 Kgs 489×382×330 mm (L×W×H)
