Product Details:
|

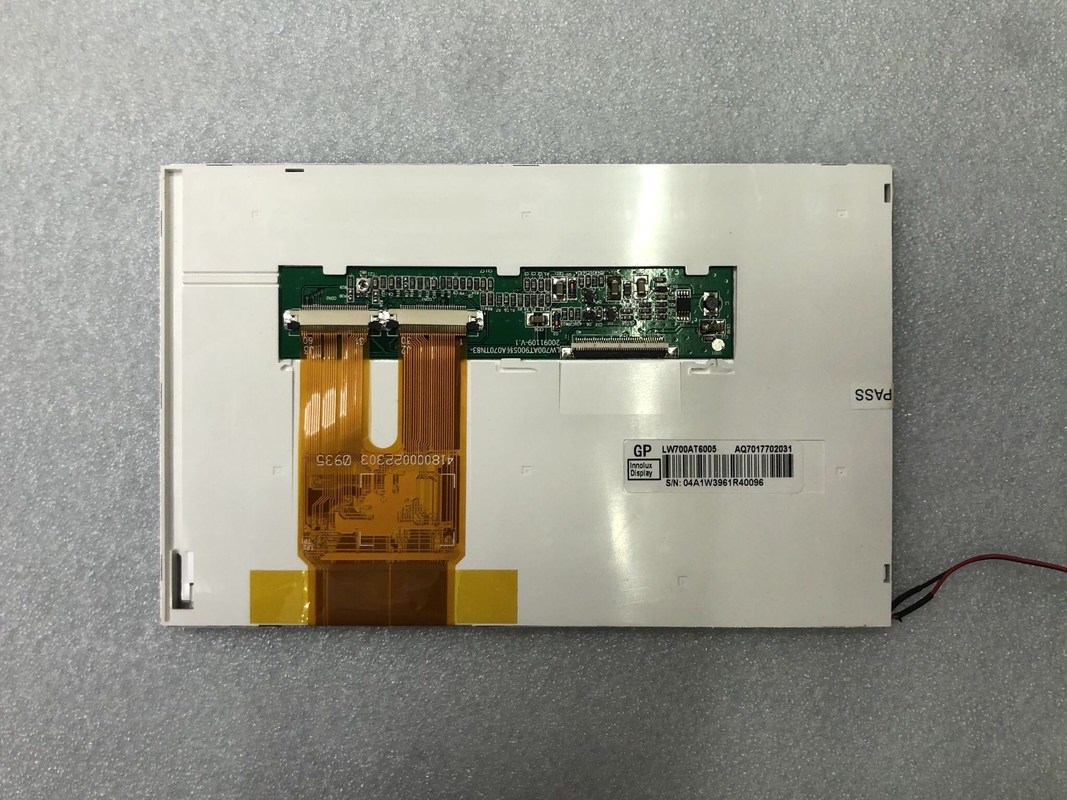

| MODEL NUMBER: | LW700AT9005 | BRAND: | CHIHSIN |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 (WVGA) 133PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | WVGA TFT LCD Panel,TFT LCD Panel LVDS,Symmetry TFT LCD Panel |
||
| Basic Information : | Brand | Model | LW700AT9005 1 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0635×0.1905 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1905×0.1905 (H×V) [133PPI] | |
| Mechanical Size : | Active Area(mm) | 152.4(H) × 91.44(V) | Bezel Area(mm) | 155.3(H) × 94.3(V) |
| Outline Dim.(mm) | 165(H) × 104(V) | Depth(mm) | 5.2±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 121g | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 5/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 150/200mA (Typ./Max.)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | TTL (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 2 pcs | 30 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S5P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.9V (Typ.) | Current Supply | 100mA (Typ.) | ||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box |
