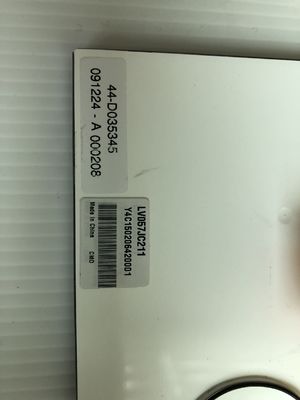

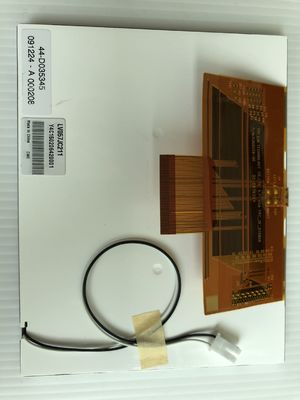

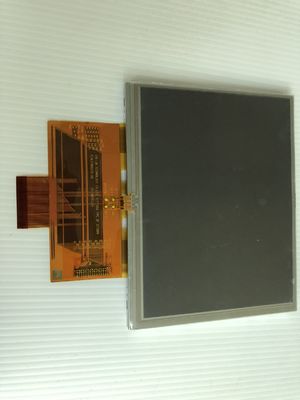

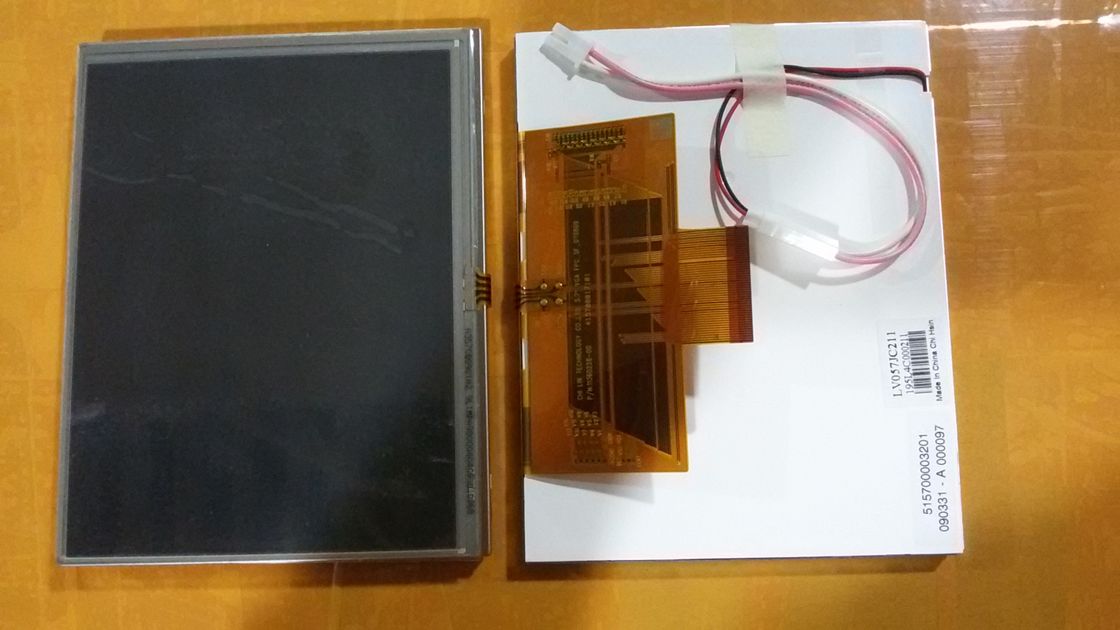

LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY

LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY
LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CHIHSIN
Certification: ISO9001
Model Number: LV057JC211
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LV057JC211 BRAND: CHIHSIN
SIZE: 5.7INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 640(RGB)×480, VGA, 141PPI
VIEWING ANGLEG: 60/60/60/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

ChiHsin LV057JC211 Application Features

Basic Information : Brand Model Type Model Alias
  LV057JC211 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 70 °C -30 ~ 80 °C



ChiHsin LV057JC211 Mechanical Features

Panel Size : 5.7 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
640(RGB)×480, VGA RGB Vertical Stripe 0.060×0.180 mm 0.180×0.180 mm [141PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
115.2×86.4 mm - 125×98.8 mm 6.74/7.14 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Other Features : Panel Cover Weight Surface
- 130g (Typ.)



ChiHsin LV057JC211 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) TN, Normally White, Transmissive 350:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
60/60/60/45 (Typ.)(CR≥10) 12 o'clock 15/35 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6638K 262K (6-bit) X:0.310; Y:0.330



ChiHsin LV057JC211 Electronics Features

Reverse Scan : Yes (U/D, L/R)



ChiHsin LV057JC211 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
6.5/15mA (Typ.)(IDD/IAVDD) 3.3/8.4/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) 164mW (Typ.)
Voltage for Display Signals : 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features : Position Type Interface
- Connector TTL (1 ch, 6-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
    1 pcs   50 pins



ChiHsin LV057JC211 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type Array 7S3P - -
WLED Electrical : Current Input Voltage Input Consumption
60mA (Typ.) 22.0/24.5V (Typ./Max.) 1.32W (Typ.)
Interface Features : Position Type WLED Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
    1 pcs   2 pins BLE-2PINS-AC
