LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY

LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY
LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CHIHSIN
Certification: ISO9001
Model Number: LR700BA9008
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

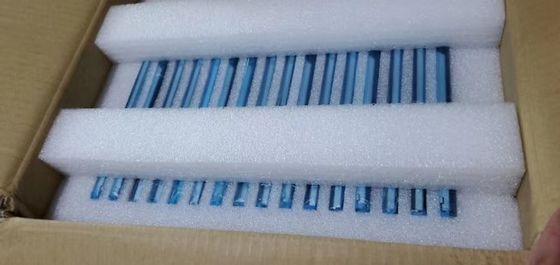

Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

LR700BA9008 CHIHSIN 7.0" 480(RGB)×234 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LR700BA9008 BRAND: CHIHSIN
SIZE: 7.0INCH BRIGHTNESS: 250CD/M2
RESOLUTION: 480(RGB)×234, 76PPI Lamp Type: WLED
VIEWING ANGLEG: 70/70/50/65 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WVGA TFT LCD Panel

,

TFT LCD Panel LVDS

,

Symmetry TFT LCD Panel

ChiHsin LR700BA9008 Application Details

Basic Info : Panel Brand   Panel Model LR700BA9008
Diagonal Size 7.0" Application





  •
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State   Vibration Rating -





ChiHsin LR700BA9008 Mechanical Details

Pixel Features : Pixel Format 480(RGB)×234 Dot Pitch 0.107×0.370 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.321×0.370 mm (H×V) [76PPI]
Mechanical Size : Display Area 154.08×86.58 mm (H×V) Bezel Area 156.9×89.6 mm (H×V)
Outline Dim. 164.9×100 mm (H×V) Outline Depth 5.7±0.3 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 162g (Typ.) Surface Antiglare



ChiHsin LR700BA9008 Optical Details

Basic Information : Brightness 250 cd/m² (Typ.) Contrast Ratio 250:1 (Typ.) (Transmissive)
Viewing Angle 70/70/50/65 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 15/35 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Color Numbers Full color
Color Temperature 6638K White Uniformity -



ChiHsin LR700BA9008 Electronics Details

Reverse Scan : Yes (U/D, L/R)
Time Controller (T-CON) : Need external T-CON





ChiHsin LR700BA9008 Backlight Details

Back-light Features: Lamp Shape Array Lamp Type WLED Life Time 10K(Min.) (Hours)
Replacement - Amount 3S7P Position Edge light type
Lamp Electrical : Voltage Input 9.9V (Min.) Current Input 140/210mA (Typ./Max.)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLE-2PINS-AC



ChiHsin LR700BA9008 Interface Details

Signal Systerm : TFT Specific Analog RGB Logic Voltage -
Signal Electrical : Voltage Input 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) Current Input 10/30/1/1mA (Max.)(ICC/IDD/IGH/IGL)
Interface Features : Type FPC Position -
FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
      26 pins 1 pcs
