Product Details:
|
| Model: | LQ080Y5DW30 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 543 Cd/m² (Typ.) | Diagonal Size: | 8.0 Inch |
| Light Source: | WLED | Operating Mode: | ASV, Normally Black, Transmissive |
| Pixel Format: | 800(RGB)×480 [WVGA] 116PPI | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||

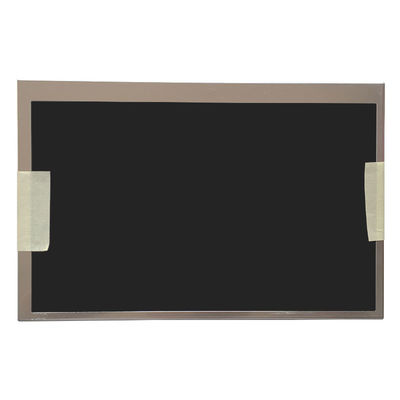

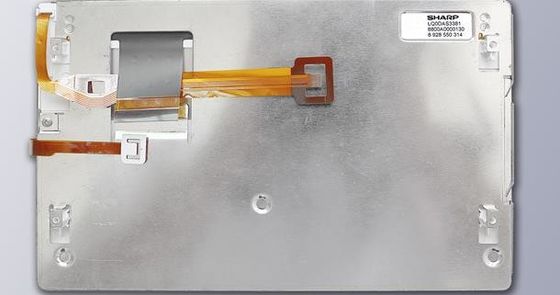

LQ080Y5DW30 is a 8.0" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, touchscreen Embeded Touch. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized by Panelook in the following: Wide Temperature, Hight Brightness, WLED Backlight . Based on its features, Panelook recommend that this model be applied to Automotive Display etc. Now this model is discontinued. There are 0 items stock and 1 suppliers of this model on Panelook. We inputted this model's specification on Jul 3 2012 for the first time, and the latest update on Oct 26 2020. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LQ080Y5DW30. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Screen Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0725×0.2175 mm | 0.2175×0.2175 mm [116PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 174×104.4 mm | - | - | 15.0 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | - | Embeded Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 435g (Typ.) | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 543 cd/m² (Typ.) | ASV, Normally Black, Transmissive | - | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 262K (6-bit) | - |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LQ080Y5DW30 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 85 °C | - |
