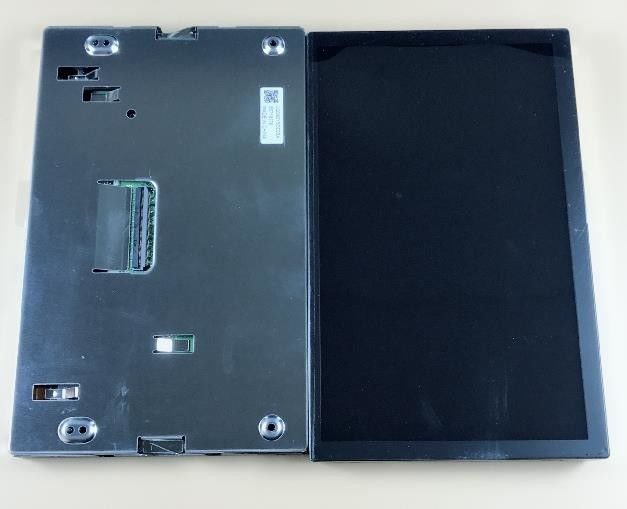

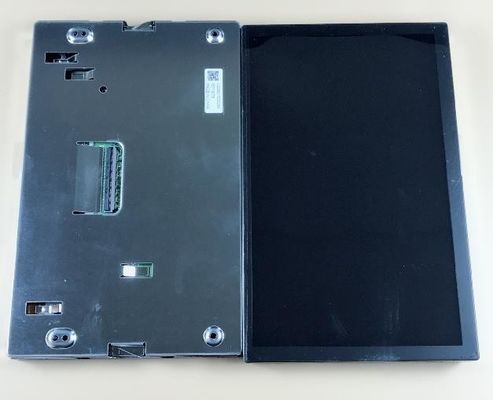

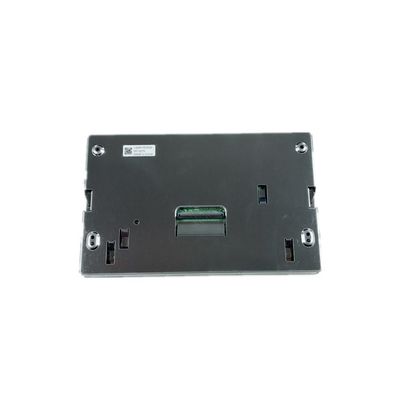

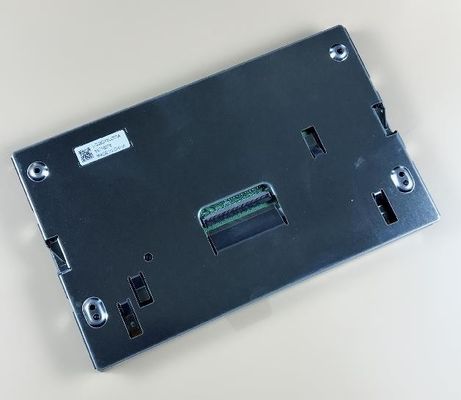

8" LCM 800×480RGB  640cd/m² LQ080Y5DZ03 Sharp TFT LCD Display

8"  LCM  800×480RGB 	640cd/m²  LQ080Y5DZ03  Sharp   TFT LCD Display
8"  LCM  800×480RGB 	640cd/m²  LQ080Y5DZ03  Sharp   TFT LCD Display 8"  LCM  800×480RGB 	640cd/m²  LQ080Y5DZ03  Sharp   TFT LCD Display 8"  LCM  800×480RGB 	640cd/m²  LQ080Y5DZ03  Sharp   TFT LCD Display

Large Image :  8" LCM 800×480RGB  640cd/m² LQ080Y5DZ03 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ080Y5DZ03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 300PCS

8" LCM 800×480RGB  640cd/m² LQ080Y5DZ03 Sharp TFT LCD Display

Description
Panel Brand: Sharp Panel Model: LQ080Y5DZ03
Lamp Type: WLED , 10K Hours , With LED Driver Signal Interface: Parallel RGB (1 Ch, 6-bit) , 68 Pins Connector
Panel Size: 8" Brightness: 640cd/m²
Resolution: 800(RGB)×480, WVGA, 116PPI Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
High Light:

CCFL Sharp TFT LCD Display

,

WLED LVDS TFT Touch Panel

LQ080 Series LQ080Y5DZ05 LQ080Y5DZ03A LQ080Y5DZ03



Sharp LQ080Y5DZ03 Mechanical Details

Pixel Features : Pixel Format 800(RGB)×480 [WVGA] Dot Pitch 0.0725×0.2175 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.2175×0.2175 mm (H×V) [116PPI]
Mechanical Size : Display Area 174×104.4 mm (H×V) Bezel Area 176.4×106.55 mm (H×V)
Outline Dim. 191.8×120 mm (H×V) Outline Depth 13.5 (Typ.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 15:9 (H:V) Shape Style
Holes & Brackets : Side mounting holes, Rear mounting holes
Other Features : Weight 400g (Typ.) Surface Antiglare, Reflection 1.5% (Typ.)





Sharp LQ080Y5DZ03 Optical Details

Basic Information : Brightness 640 cd/m² (Typ.) Contrast Ratio 2000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode ASV, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 15/5 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.290; Wy:0.320 Color Numbers 262K (6-bit)
Color Temperature 8022K White Uniformity 1.18 (Typ.)(9 points)
1931 Color Gamlt : NTSC Ratio 65% sRGB 85% coverage
Adobe RGB 67% coverage DCI-P3 67% coverage
Rec.2020 48% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ080Y5DZ03 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 10K(Min.) (Hours)
Replacement - Amount - Position Edge light type
Interface Features : Type Included in panel signal interface Position - Lamp Driver With LED Driver
Driver Electrical : Voltage Input 7.0/13.5/18.0V (Min./Typ./Max.) Current Input 450/1000mA (Typ./Max.)





Sharp LQ080Y5DZ03 Interface Details

Signal Systerm : Parallel RGB (1 ch, 6-bit) Logic Voltage 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 260/350mA (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS FH41-68S-0.5SH(05) 0.5 mm 68 pins 1 pcs



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



8"  LCM  800×480RGB 	640cd/m²  LQ080Y5DZ03  Sharp   TFT LCD Display 0
