Product Details:
|
| Model: | LQ080Y5DZ05 | Brand: | Sharp |
|---|---|---|---|
| Viewing Angle: | 85/85/85/85 | Diagonal Size: | 8.0 Inch |
| Pixel Format: | 800(RGB)×480 [WVGA] 116PPI | Light Source: | WLED , 10K Hours |
| Configuration: | RGB Vertical Stripe | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ080 Series LQ080Y5DZ05 LQ080Y5DZ03A LQ080Y5DZ03

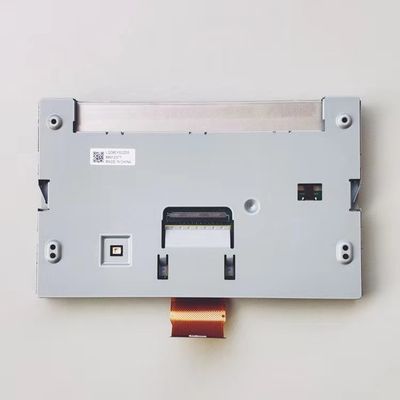

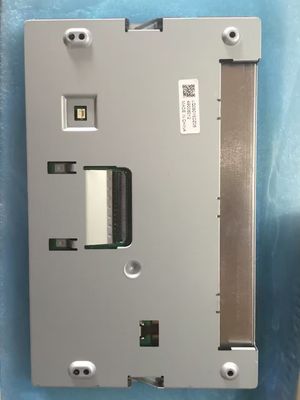

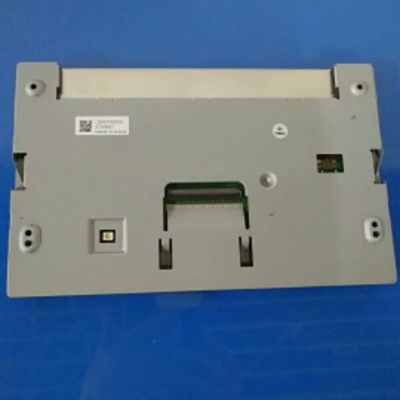

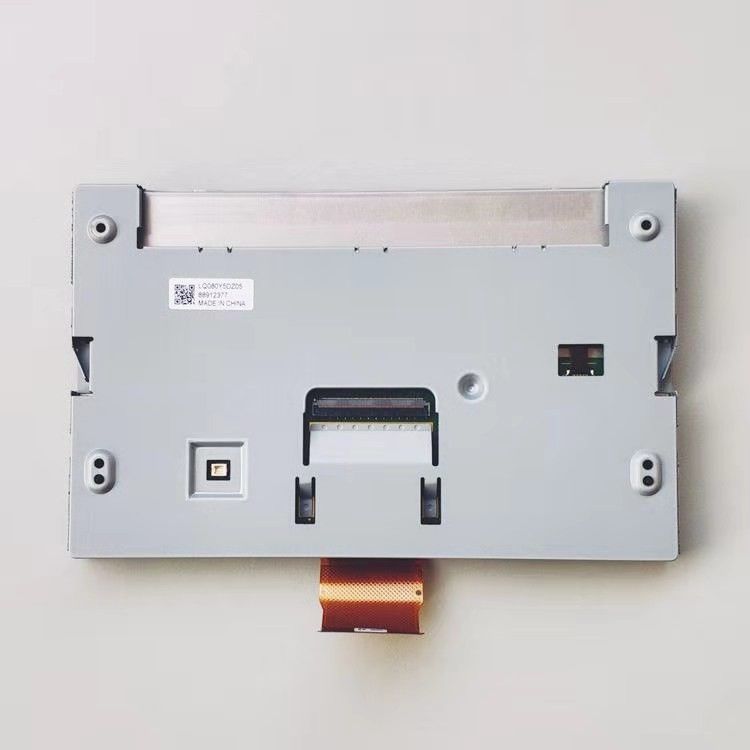

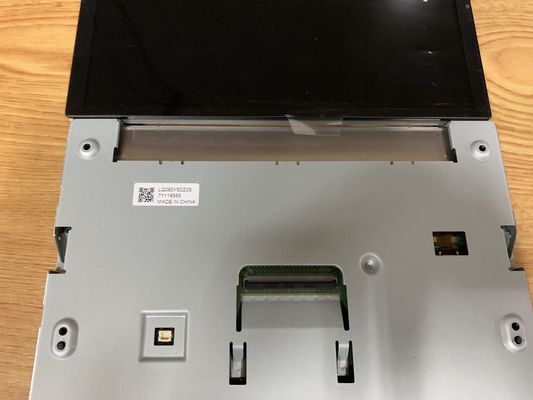

LQ080Y5DZ05 is a 8.0" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . It's general features are summarized by Panelook in the following: Wide Temperature, WLED Backlight . Based on its features, Panelook recommend that this model be applied to Industrial, Automotive Display etc. Now this model is discontinued. There are 3 items stock and 2 suppliers of this model on Panelook. We inputted this model's specification on Mar 28 2019 for the first time, and the latest update on Apr 2 2019. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LQ080Y5DZ05. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0725×0.2175 mm | 0.2175×0.2175 mm [116PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 174×104.4 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | ASV, Normally Black, Transmissive | 2000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 15/5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
