8.4" LCM 800×600RGB  400cd/m² LQ084S3LG11 Sharp TFT LCD Display

8.4"	LCM	800×600RGB 	400cd/m²  LQ084S3LG11  Sharp  TFT LCD Display
8.4"	LCM	800×600RGB 	400cd/m²  LQ084S3LG11  Sharp  TFT LCD Display 8.4"	LCM	800×600RGB 	400cd/m²  LQ084S3LG11  Sharp  TFT LCD Display 8.4"	LCM	800×600RGB 	400cd/m²  LQ084S3LG11  Sharp  TFT LCD Display

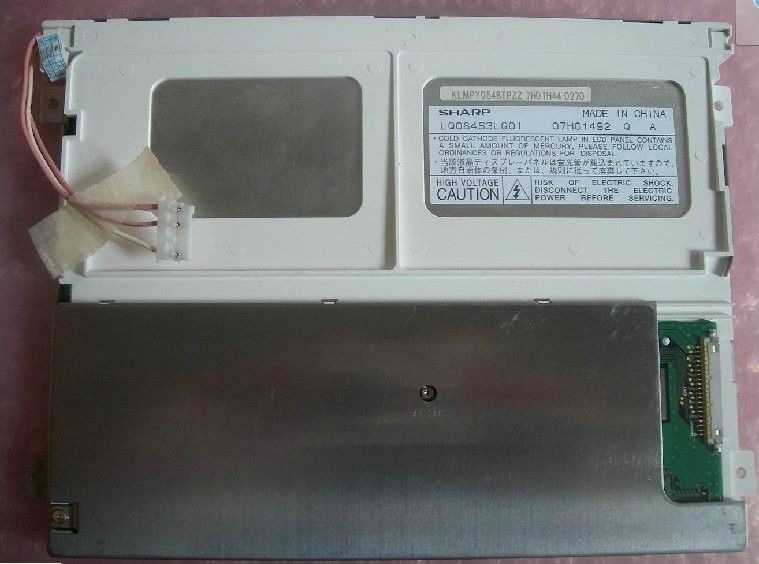

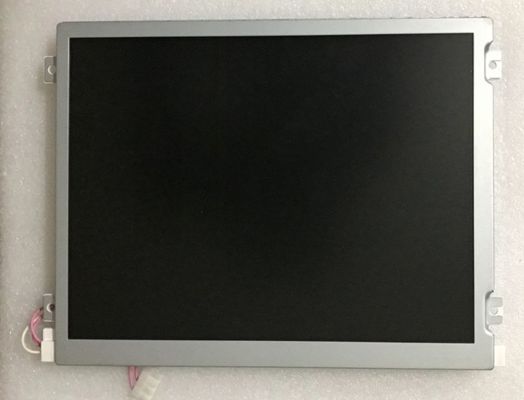

Large Image :  8.4" LCM 800×600RGB  400cd/m² LQ084S3LG11 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084S3LG11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 550×310×300 mm 9.5 Kgs
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS

8.4" LCM 800×600RGB  400cd/m² LQ084S3LG11 Sharp TFT LCD Display

Description
Panel Model: LQ084S3LG11 Panel Size: 8.4"
Panel Brand: Sharp Brightness: 400 Cd/m² (Typ.)
Resolution: 800(RGB)×600, SVGA, 119PPI Environment: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Lamp Type: WLED , 50K Hours , With LED Driver
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084S3LG12 LQ084S3LG11 LQ084S3LG03 LQ084S3LG02 LQ084S3LG01





Sharp LQ084S3LG11 Optical Details

Basic Information : Luminance 400 cd/m² (Typ.) Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 35 (Typ.)(Tr+Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)  Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.350 Support Color 262K/16.7M (6-bit / 8-bit)
Color Temperature 6336K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 51% sRGB 71% coverage
Adobe RGB 54% coverage DCI-P3 53% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ084S3LG11 Mechanical Details

Pixel Features : Number of Pixel 800(RGB)×600 [SVGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.071×0.213 mm Pixel Pitch(W×H) 0.213×0.213 mm [119PPI]
Physical Size : Active Viewing 170.4(W)×127.8(H) mm Overall Dim. 200(W)×152(H) mm
Bezel Opening 173.4(W)×130.8(H) mm Overall Depth 9.8 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Face mounting holes (4-Φ2.8) on left, right bezel
Other Detail : Mass 330g (Max.) Surface Antiglare, Hard coating (3H)





Sharp LQ084S3LG11 Interface Details

Signal Electrical : Input Current 270/470mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-SE20P-HFE 1 pcs 1.25 mm 20 pins

Sharp LQ084S3LG11 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 50K(Typ.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
molex 53261-0871 1 pcs 1.25 mm 8 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 310/400mA (Typ./Max.) Input Voltage 11.2/12.0/12.6V (Min./Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
