Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ084V1DG21E |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Panel Size: | 8.4" |
| Lamp Type: | 1 Pcs CCFL , 50K Hours | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Resolution: | 640(RGB)×480, VGA, 94PPI | Environment: | Operating Temp.: 0 ~ 55 °C ; - |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ084 Series LQ084V1DG22 LQ084V1DG21E LQ084V1DG21
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.089×0.270 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.267×0.270 mm (H×V) [94PPI] | |
| Mechanical Size : | Display Area | 170.88×129.6 mm (H×V) | Bezel Area | 175.9×134.6 mm (H×V) |
| Outline Dim. | 216×152.4 mm (H×V) | Outline Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 250:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 55/55/55/40 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 20/40 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (LQ0DDB0004) | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | Current Input | 2.0/6.0/6.5mA (Min./Typ./Max.) | |||
| Frequency | 20/45/70KHz (Min./Typ./Max.) | Kick-off Voltage | 1300/1500V (Max.)(Ta=+25/0℃) | |||
| Consumption | 4.1W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | - |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |

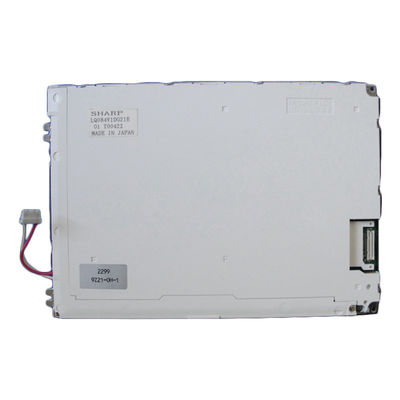

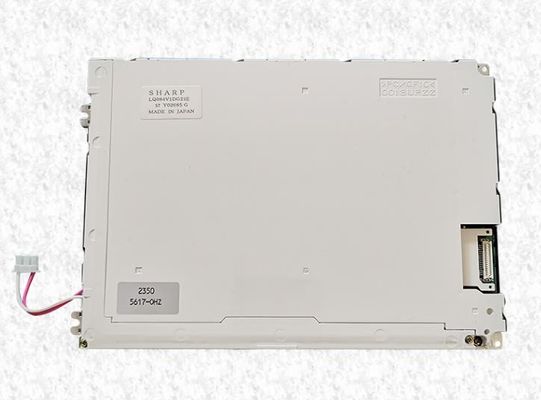

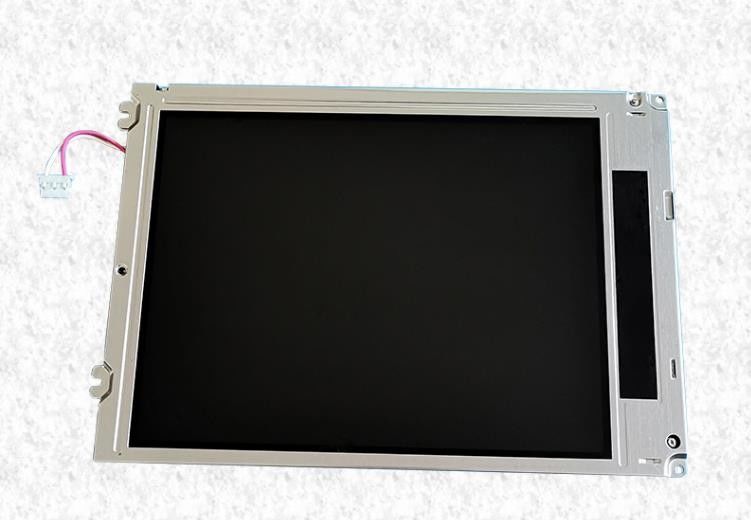

LQ084V1DG21E supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×129.6(H) mm, outline size of 216(W)×152.4(H) mm, viewing area size of 175.9(W)×134.6(H) mm. As a TN, Normally White, Transmissive LCM product, LQ084V1DG21E can provides 300 cd/m² display brightness 250:1 transimissive contrast ratio, 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours.
