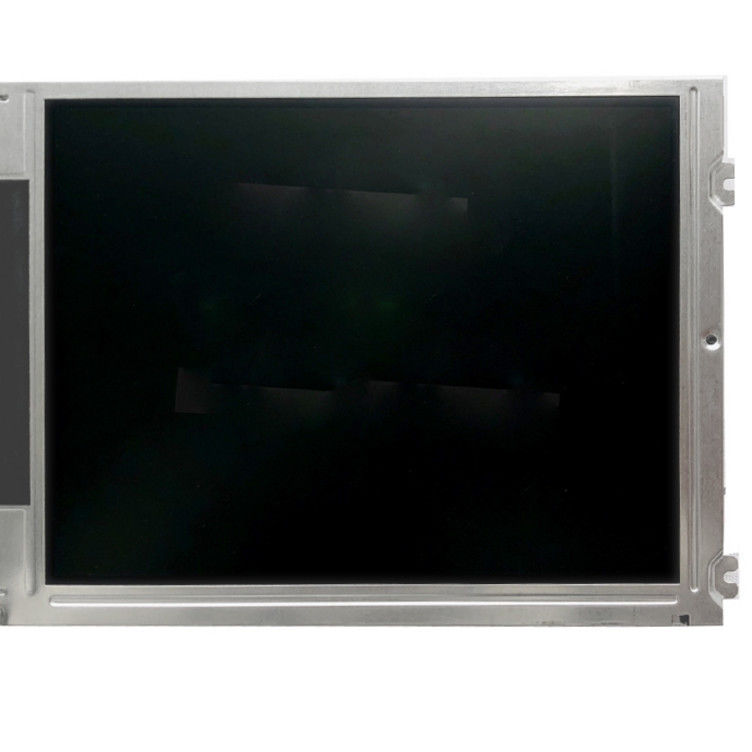

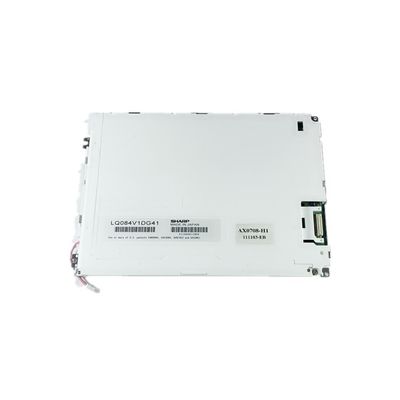

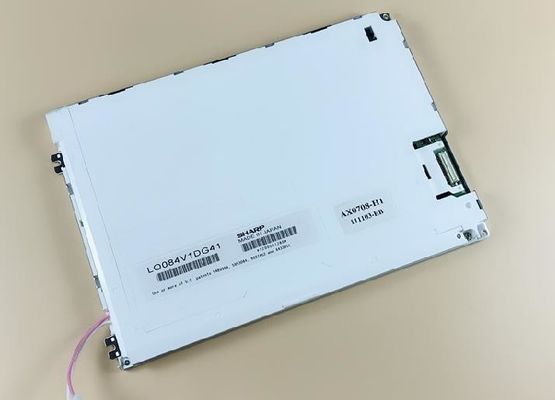

Product Details:
|
| Model: | LQ084V1DG41 | Brand: | Sharp |
|---|---|---|---|
| Diagonal Size: | 8.4 Inch | Luminance: | 300 Cd/m² (Typ.) |
| Pixel Format: | 640(RGB)×480 [VGA] 95PPI | Light Source: | CCFL [1 Pcs] , W/O Driver |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Environment: | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ084 Series LQ084V1DG44 LQ084V1DG43 LQ084V1DG42 LQ084V1DG41
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.089×0.267 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.267×0.267 mm (H×V) [95PPI] | |
| Mechanical Size : | Display Area | 170.88×128.16 mm (H×V) | Bezel Area | 175.9×134.6 mm (H×V) |
| Outline Dim. | 221×152.4 mm (H×V) | Outline Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes | |||
| Other Features : | Weight | 430g (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 10/25 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45 (Max.)(5 points) |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 680V (Typ.) | Current Input | 3.5/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 35/45/70KHz (Min./Typ./Max.) | Kick-off Voltage | 1500V (Max.)(Ta=-10℃) | |||
| Consumption | 4.1W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | VIL≤0.8V; 2.1V≤VIH | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VCC) | Current Input | 240/155mA (Typ.)(ICC) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9BA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
LQ084V1DG41 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×128.16(H) mm, outline size of 221(W)×152.4(H) mm, viewing area size of 175.9(W)×134.6(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 430g (Max.). As a TN, Normally White, Transmissive LCM product, LQ084V1DG41 can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed.
