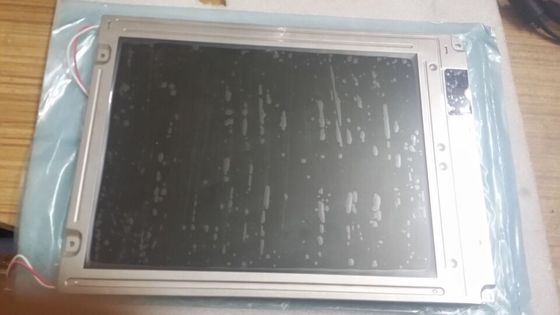

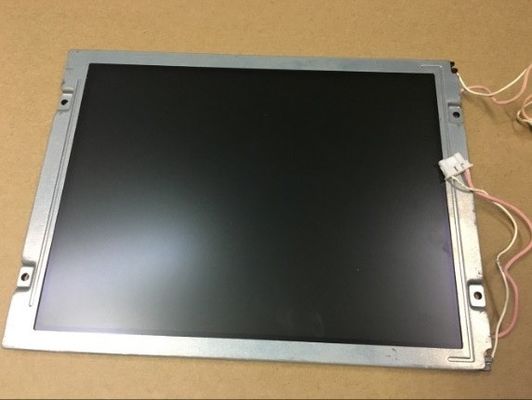

T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY
T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Large Image :  T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-55466D084J-LW-A-AAN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 200PCS

T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: T-55466D084J-LW-A-AAN BRAND: Kyocera
SIZE: 8.4INCH RESOLUTION: 800×600RGB
BRIGHTNESS: 600 Cd/m² (Typ.) Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Lamp Type: 2 Strings WLED , 60K Hours , Without Driver TEMPERATURE RANGE: Operating Temp.: -30 ~ 80 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-55466D084J-LW-A-AAN Application Features

Basic Information : Brand Name Model Name  1 Compatible Type Model Alias
  T-55466D084J-LW-A-AAN a-Si TFT-LCD , LCM AA084SB01
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -30 ~ 80 °C -30 ~ 80 °C -
Application :



OPTREX T-55466D084J-LW-A-AAN Mechanical Features

Screen Size : 8.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.071×0.213 mm 0.213×0.213 mm [119PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
170.4×127.8 mm 174.9×132.2 mm 199.5×149 mm 11.5 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
365g (Typ.) - Antiglare, Hard coating (3H)
Holes & Brackets : Face mounting holes (4-Φ3.4), Side mounting holes (4-M2)



OPTREX T-55466D084J-LW-A-AAN Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
600 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 80/80/80/60 (Typ.)(CR≥10) 4/12 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K/16.7M (6-bit / 6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
39% 54% 41%
DCI-P3 Coverage Rec.2020 Coverage Remarks
41% 29% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.30 (Max.)(5 points)



OPTREX T-55466D084J-LW-A-AAN Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)



OPTREX T-55466D084J-LW-A-AAN Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type (Bottom side) 60K(Min.) 2 strings 2 strings Replaceable
WLED Electrical : Input Voltage Input Current Power Consumption
30/36.5V (Typ./Max.) 60/70mA (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM06B-SHLS-TF 1 pcs 6 pins 1.0 mm BLE-6PINS-NNCAAC



OPTREX T-55466D084J-LW-A-AAN Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 350/540mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6/8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
I-PEX 20186-020E-11F 1 pcs 20 pins 1.25 mm LVDS-20P1C8B-010H

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY 0T-55466D084J-LW-A-AAN Kyocera 8.4INCH LCM 800×600RGB	600NITS WLED LVDS INDUSTRIAL LCD DISPLAY 1
