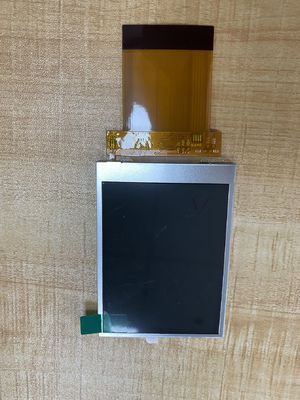

Product Details:
|
| MODEL NUMBER: | LQ028AC21F | BRAND: | CHIHSIN |
|---|---|---|---|
| SIZE: | 2.8 Inch | BRIGHTNESS: | 150CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 240(RGB)×320, QVGA, 141PPI |
| VIEWING ANGLEG: | 45/45/35/15 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | WVGA Industrial Lcd Panel,Capacitive TFT Touch Panel,VGA Lcd Display Panels |
||
| Basic Detail : | Manufacturer | Model Name | LQ028AC21F | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 2.8 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 150 cd/m² (Typ.) | Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 15/35 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/35/15 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K |
| Pixel Features : | Number of Pixel | 240(RGB)×320 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060×0.180 mm | Pixel Pitch(W×H) | 0.180×0.180 mm [141PPI] | |
| Physical Size : | Active Viewing | 43.2(W)×57.6(H) mm | Overall Dim. | 50(W)×69.2(H) mm |
| Bezel Opening | - | Overall Depth | 4.0±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch |
| Reverse Scan : | No |
|---|---|
| Driver IC : | Built-in HX8347 |
| Signal Electrical : | Input Current | - | Input Voltage | 2.8/2.8V (Typ.)(VCC/IOVCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CPU | |||
| Logic Voltage for Signals : | -0.3V≤VIL≤0.2IOVCC; 0.8IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 39 pins | |||||
| Lamp Features: | Lamp Shape | Parallel | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1S4P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | |||
| Consumption | 280mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 330 pcs / box | - |
