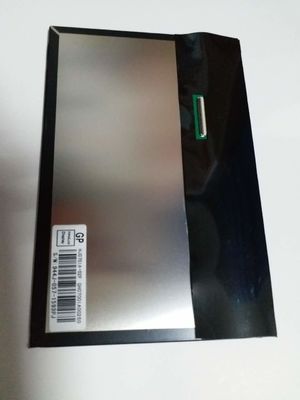

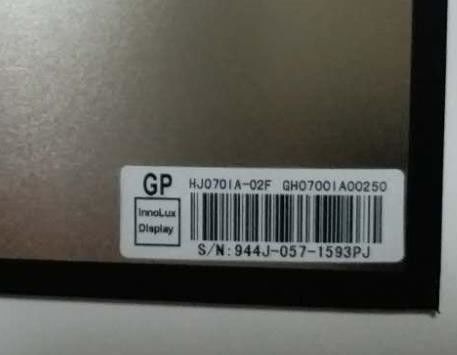

Product Details:
|
| MODEL NUMBER: | HJ070IA-02F | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800, WXGA, 217PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | WVGA Industrial Lcd Panel,Capacitive TFT Touch Panel,VGA Lcd Display Panels |
||
| Basic Detail : | Manufacturer | Model Name | HJ070IA-02F | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -10 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6477K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.039×0.117 mm | Pixel Pitch(W×H) | 0.117×0.117 mm [217PPI] | |
| Physical Size : | Active Viewing | 149.76(W)×93.6(H) mm | Overall Dim. | 161.2(W)×107.2(H) mm |
| Bezel Opening | 151.76(W)×95.6(H) mm | Overall Depth | 2.5/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 102g | Surface | Hard coating |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 2.09W (Typ.) |
| Signal Electrical : | Input Current | 135/35/0.5/0.5mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/9.74/22.7/-8V (Typ.)(VDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.81W (Typ.) | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Vigorconn | F62240-H1210A | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C8B-050D | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 100±4mA | Input Voltage | 12.8/13.2V (Typ./Max.) | ||
| Consumption | 1.28W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 80 pcs / box |
