Product Details:
|

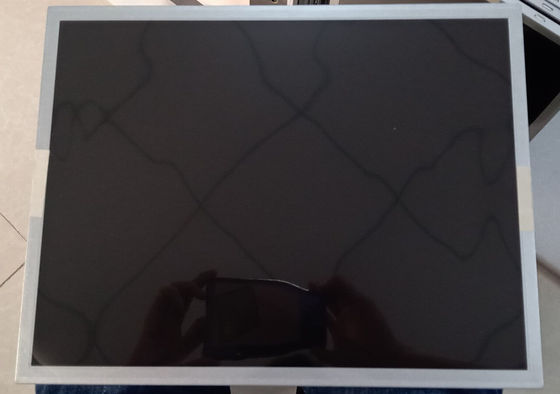

| MODEL NUMBER: | G150XJE-E02 | SIZE: | 15.0 Inch |
|---|---|---|---|
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Lamp Type: | WLED |
| BRAND: | INNOLUX | RESOLUTION: | 1024(RGB)×768, XGA, 85PPI |
| VIEWING ANGLEG: | 88/88/88/88 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C |
| High Light: | WVGA Industrial Lcd Panel,Capacitive TFT Touch Panel,VGA Lcd Display Panels |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G150XJE-E02 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C |
| Panel Size : | 15.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 304.128×228.096 mm | - | - | 6.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | NPVA, Normally Black, Transmissive | 2500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 16/7 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 440/535mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | eDP (1 Lane) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-030E-76 | 1 pcs | 0.5 mm | 30 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 12.0±1.2V | |||||
