G104S1-L01 INNOLUX 10.4" 800(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

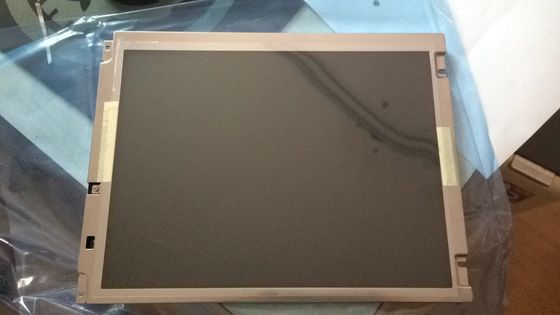

Large Image : G104S1-L01 INNOLUX 10.4" 800(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	INNOLUX
Certification:	ISO9001
Model Number:	G104S1-L01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1500PCS

Contact Now

G104S1-L01 INNOLUX 10.4" 800(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	G104S1-L01	BRAND:	INNOLUX
SIZE:	10.4 Inch	BRIGHTNESS:	400CD/M2
Lamp Type:	WLED	RESOLUTION:	800(RGB)×600, SVGA, 96PPI
VIEWING ANGLEG:	80/80/70/70 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C
High Light:	IPS Lcd Display Panels , RGB Vertical LCD Display , LVDS TFT LCD Module

Chimei Innolux G104S1-L01 Application Details

Basic Information :	Brand G104S1-L01Model Type a-Si TFT-LCD , LCM Used For 10.4 inchScreen Size Alias -
Environment :	Storage Temp. -40 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS 1.5G (14.7 m/s²)Vibration

Chimei Innolux G104S1-L01 Mechanical Details

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.088×0.264 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.264×0.264 (H×V) [96PPI]
Mechanical Size :	Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 214.8(H) × 162.7(V) Outline Dim.(mm) 243(H) × 184(V) Depth(mm) 7.0/7.3 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right slugs
Other Spec :	Weight 355g (Typ.) Treatment Antiglare, Hard coating (3H)

Chimei Innolux G104S1-L01 Optical Details

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/70/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 5/11 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.292; Wy:0.334 Display Colors 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 7620K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 53% sRGB 72% coverage Adobe RGB 55% coverage DCI-P3 55% coverage Rec.2020 40% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G104S1-L01 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 540/650mA (Typ./Max.) Consumption 2.0W (Typ.)
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration STARCONN 107A20-0022RA-G3-R 1.0 mm 20 pins 1 pcs LVDS-20P1C8B-080A

Chimei Innolux G104S1-L01 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement Replaceable Shape - Life Time 30K(Min.) (Hours)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration E&T 3823K-F05N-00L 1.25 mm 5 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 12.0±5.0V Current Supply 0.25/0.3A (Typ./Max.) Consumption 3.0/3.6W (Typ./Max.)

Chimei Innolux G104S1-L01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	16 pcs / box	11.7 Kgs	570×450×320 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
