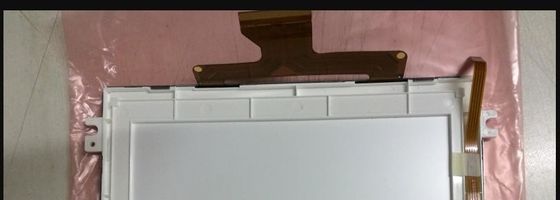

Product Details:
|
| MODEL NUMBER: | G075ADE-T01 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 120CD/M2 |
| RESOLUTION: | 1200×900 200PPI | VIEWING ANGLEG: | 15/15/15/15 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | IPS Lcd Display Panels,RGB Vertical LCD Display,LVDS TFT LCD Module |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| G075ADE-T01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Remarks : | Dual mode amorphous silicon TFT: reflective mode & transmissive mode; This module supports 1200 x 900 reflective (monochrome) mode / 693 x 520 transmissive (color) mode and can display 262,144 colors | |||
| Screen Size : | 7.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1200×900 | - | 0.127×0.127 mm | 0.127×0.127 mm [200PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 152.4×114.3 mm | 155.4×117.3 mm | 169.7×139.7 mm | 6.2/6.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 172g (Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 120 cd/m² (Typ.) | TN, Normally White, Transflective | 85:1 (Typ.) (Transmissive) 4:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| - | 15/15/15/15 (Typ.)(CR≥10) | 30/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6785K | 262K (6-bit) | X:0.306; Y:0.337 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 29% | 41% | 30% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 30% | 22% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 2.00 (Max.)(5 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 18% (Typ.) | |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 4S3P | 3 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.4/14.0V (Min./Max.) | 20mA (Typ.) | 0.1/0.82W (Min./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 4 pins | 1.0 mm | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/9.6/18/-7V (Typ.)(VDD/VAA/VGH/VGL) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TTL (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 55 pins | 0.5 mm | ||||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 50 pcs / box | - | 510×460×247 mm (L×W×H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Need external T-CON |
