Product Details:
|

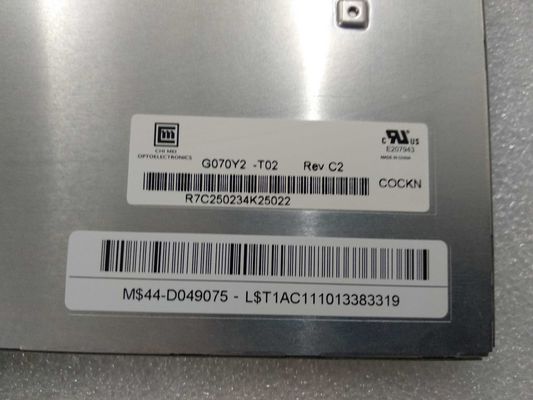

| MODEL NUMBER: | G070Y2-T02 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480, WVGA, 133PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Perating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | IPS Lcd Display Panels,RGB Vertical LCD Display,LVDS TFT LCD Module |
||
| Basic Detail : | Manufacturer | Model Name | G070Y2-T02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 3.0G (29.4 m/s²) | RoHS |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0635×0.1905 mm | Pixel Pitch(W×H) | 0.1905×0.1905 mm [133PPI] | |
| Physical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 165(W)×104(H) mm |
| Bezel Opening | 154.6(W)×93.64(H) mm | Overall Depth | 6.33±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 132±15g | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.45W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 22/29/0.216/0.213mA (Typ.)(ICC/IDD/IGG/IEE) | Input Voltage | 3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | TTL (1 ch, 6/8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S2P | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 110mA (Typ.) | Input Voltage | 18.9/28.0/31.5V (Min./Typ./Max.) | ||
| Consumption | 3.08W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 2 pins | BLE-2PINS-AC | ||||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 34 pcs / box | 465×362×314 mm | - |
